Autel MaxiSys MS906BT Automotive Diagnostic Scan Tool with ECU Coding, Auto Scan, Bi-Directional Control, OE-level Diagnosis, Oil Reset Service, EPB, ABS, SRS, SAS

: In stock

: Auto Diagnostic Tool

: Autel

£898.00 £999.00

Autel MaxiSys MS906BT Description: Autel MaxiSys MS906BT is the latest addition to the MaxiSys product line of advanced wireless diagnostic devices. The device...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Autel MaxiSys MS906BT Description:

Autel MaxiSys MS906BT is the latest addition to the MaxiSys product line of advanced wireless diagnostic devices. The device is based on the Android operating system featured with the best possible coverage of OE-level diagnostics and ECU coding capability. Utilizing the powerful Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), an 8” capacitive HD touch screen, and long-distance wireless communication, the Autel MaxiSys MS906BT efficiently provides comprehensive vehicle diagnostics and analysis. With ECU coding, complete capability for codes and a series of most commonly used service and special functions, the Autel MaxiSys MS906BT automotive scanner tool covers everyday tasks of automotive repair and DIY, including Key Coding & Programming, Functional tests/Active tests/Bi-Directional Control, ABS brake bleeding, Oil Rest, SAS calibration, DPF Regeneration, TPMS relearn, Battery Registration, Reset brake pads after replacement, adaptations and etc.

Autel MaxiSys MS906BT Highlights:

1. Language Supported: Only English
2. One Year Free Update Online, you need to buy the extra 1 Year Update Service when the free update is expired.
3. Support WIFI and Bluetooth. But WIFI is only for Update. Can Not Use WIFI Connection to Do Diagnose. Bluetooth is available for connectivity between the display tablet and VCI device allows greater mobility and ease at work.
4. Benz 14 Pin Adapter Does Not Contains in the package. if you want it, you need to buy it separately.
Other Parts of Autel MaxiSys MS906BT on Sale: Autel MaxiSys Chrysler/Dodge/Jeep/Fiat/Alfa 12+8 Pin OBDII Cable Adapter

What's the Advantages of Autel MaxiSys MS906BT?

1. High Quality Hardware Configuration: 8 inch touch screen easy-to-use comprehensive vehicle diagnostics and analysis scanner,  With Android 4.4.2 Operating System for fast boot-up and multitasking, Support OE-Level Vehicle coverage and functions
2. Advanced Version for MS906: As advanced version of Autel MS906, Autel MaxiSys MS906BT comes with advanced ECU Coding capability compatible with add-ons like oscilloscope and digital inspection camera, USB port and HDMI port. It supports both wireless via Bluetooth and lined connection for data transmission and wireless OE-Level all modules diagnosis.
3. Supports 2 Communication Methods: Wireless BT and USB:  BT pairing is recommended as the first choice for the communication between the Display Tablet and the VCI device. The working range for BT communication is about 164 feet (about 50 m); this means you can perform vehicle diagnosis freely around the workshop with greater convenience. The USB cable connection is a simple and quick way to establish communication between the Display Tablet and the MaxiVCIV100.
4. Wireless All Modules Diagnosis: Autel MaxiSys MS906BT diagnostic scan tool supports data transmission through wireless BT communication or traditional USB connection. And Bluetooth pairing is fast with working range up to 164 feet(around 50m). The wireless scanner can transmit vehicle data to the powerful android tablet without physical connection which allows you to perform vehicle all available modules OE-Level diagnosis remotely in the shade of a tree.
5. BI-Directional Control/Active Test: Autel MaxiSys MS906BT comes with bi-directional control for specific car systems, allow you determine the integrity of the system or parts by reading the engine ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay, or switch, between two operating states. Note: Active Tests are not universal for all vehicles. Please contact sales@auteldiag.co.uk with VIN number to check compatibility.
6. Two Options Available: Auto Scan & Control Units: The Auto Scan function performs a comprehensive scanning over all the systems on the vehicle’s ECU in order to locate fault systems and retrieve DTCs. Control Units allows you to manually locate a required control system for testing through a series of choices-ECU Information, Read Codes, Erase Codes, Live Data, Active Test, Special Functions.
7. 21 Service Functions: Autel MaxiSys MS906BT is the latest addition to the MaxiSys product line of advanced wireless diagnostic tools. The Service section is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances. It has 21 service functions options, mainly including Oil Reset, EPB service, TPMS ID Relearn, ABS Auto Bleed, SAS Calibration , DPF Regeneration and etc. Note: Service/Special functions are NOT universally compatible with all vehicles. Please contact sales@auteldiag.co.uk to check compatibility with VIN number. NOTE: Changing menu language is NOT available for MS906BT. Faster Than Ever Before


Autel MaxiSys MS906BT Vehicle Coverage:

For Asian: Acura, Daihatsu, Hyundai, Infinit, Kiat, Mazda, Nissan, Scion, Subaru, Toyota, Manhindra, Proton, Daewoo, Honda, HyundaiCV, Isuzu, Lexus, Mitsubishi, Samsung, Ssang Yong, Suzuki, Fuso, Perodua, Tata
For European: VW, Abarth, AstonMartin, MINI, Sprinster, SKODA, Citroen, Fiat, Lancia, Maserati, Opel, Porsche, SAAB, Vauxhall, Seat, Bugatti, Audi, ForEU, BMW, Alfa, Benz, Maybach, Ferrari, Jaguar, Land Rover, Peugeot, Renault, Smart, Volvo, Lamborghini, Bentley, Rolls-Royce, VW CV, Dacia, LT3
For USA: Chrysler, Dodge, Ford, GM, JEEP


Autel MaxiSys MS906BT Functions:


1. All System OE-Level Diagnosis
Read & Clear Codes on All Available Modules
Autel MaxiSys MS906BT, as a professional scan tool and upgraded version of Autel MS906, it can access wirelessly via Bluetooth connection ALL available vehicle modules including but not limited to PCM, ECM, EPS, PDM, BCM, TPM, SCCM, RADIO and etc. With complete capability for codes, it can read and clear codes on all systems and subsystems and be able to show live PID data of multiple sensors in graph & text.

2. Bluetooth Wireless Diagnosis
The Autel MaxiVCI allows the bluetooth diagnostic scanner to communicate with the DLC via Bluetooth and lined USB connection. With an ultra long working range of about 164 feet (about 50m), you can perform vehicle OE-Level All Modules diagnosis and services remotely without worrying about the cable might not be long enough or the limited space and hot air in your car.

3. Bi-directional Control
Bi-directional Control not only performs various bi-directional tests to check the operating conditions of ABS and SRS, but also applies to functions such as Component Test and Active Test, Actuator Test.
Active Test is used to access vehicle-specific subsystem and component tests. During an active test, the tester outputs commands to the ECU in order to drive the actuators. This test determines the integrity of the system or parts by reading the engine ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay, or switch, between two operating states.

4. AUTO VIN TECHNOLOGY
Autel MS906BT diagnostic system features the latest VIN-based Auto VIN Scan function to identify CAN vehicles in just one touch, which allows the technician to quickly detect vehicles, scan all the diagnosable ECUs on every vehicle and run diagnostics on the selected system.

5. Advanced ECU Coding Capability
Autel MS906BT automotive diagnostic tool with advanced ECU Coding function, which is one of the features not available in the MS906. ECU Coding allows you to establish a data link to the electronic control system of the test vehicle via the VCI device for vehicle diagnosis, service or coding. You can operate functional tests, retrieve vehicle diagnostic information such as trouble codes, event codes and live data, and perform ECU coding, for various vehicle control systems, such as engine, transmission, ABS and more.

Coding functions are usually used by advanced specialists. Coding is conditionally divided into two types:
The first is the computer coding during replacement, commissioning, used to install a new computer in the car. When performing the procedure, the computer is informed of vehicle's VIN, the configuration and other information necessary for correct operation.
The second is the coding of the computer for tuning the body electronics to the user, usually the BCM. The procedure will allow you to offer the customer individual customization of the car for him, locking the doors, setting alarms, the function "lead to home", setting the salon and outdoor lighting, etc

6. IMMO Keys/ Key Fob
The IMMO service of MS906BT can disable a lost vehicle keys and program the replacement key fob. One or more replacement key fobs can be programmed.( Before programming,please check and erase the fault codes. )
Note: Key function is only available for most vehicles with low security level, not applicable to vehicles with high-level safety systems such as BMW,Benz

7. Digital and Graphical Display of Parameters
Using MaxiSys you can display the parameters of the system conveniently. Some parameters are more likely to be monitored in analog form, for example, pressure. Some parameters are more conveniently viewed in graphical form, by observing their change in time (potentiometers, oxygen sensor). Some parameters must be displayed in the graph to observe changes relative to each other (for example, air mass flow and engine speed). Only in MaxiSys all these ways of displaying are available for all parameters and all components, regardless of the makes and models of the car.

8. Special Tests
The actuators are not always visually visible or too complex to assess their performance with organoleptic (eyes, ears) methods through normal activation. That's why the test-components are implemented in MaxiSys scanners. Test-components will allow you to include special test modes in the computer, in which the electronic system itself creates conditions for verification and evaluates its results with further recommendations to the expert

9. Adaptation and Initialization
After replacement, for repair or cleaning of some sensors and many actuators of electronic systems, an adaptation or initialization procedure is required. When performing this procedure, the basic values of their work, the reference point, are established. In a modern car, there are many such elements that require similar procedures, which makes these functions vital for the service. In MaxiSys systems, these procedures are presented at the dealer level.

Special Functions:

1. Oil Reset Service: Reset service mileage and service intervals for the Engine Oil Life system.
2. TPMS Service: Quickly look up the tire sensor IDs from the vehicle's ECU,perform TPMS programming and reset procedures after tire sensors are replaced.
3. SAS Service: Perform calibration for the Steering Angle Sensor and automatically cleared the fault memory.
4. DPF Regeneration Service: Clear the blockage through continuous burning of the particulate matter captured in the DPF filter.
5. ABS/SRS Services: Perform various bi-directional test to check the operating conditions of both the Anti-lock Braking System and the Supplemental Restraint System,such as Automated Bleeding,Pump Motor Test,and checking Module information,etc.
6. EPB Service: Deactivate and activate the brake control system,assist with brake fluid control,open and close brake pads,and set brakes after disc or pad replacement,etc.
7. BMS Service: Allow the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
8. IMMO Service: Disable a lost vehicle keys and program the replacement key fob.


Comparison for Autel Maxisys MS906 and Autel MS906BT:

MS906 has the same apperance with MS906BT, but MS906BT has several advantages than MS906:
MS906BT is installed Bluetooth, allowing diagnosis wirelessly.
MS906BT' s diagnostic coverage includes premium vehicle brands such as Maserati and Bentley, which would be required for high-end service shops.
MS906BT supports oscilloscope and digital inspection camera add-ons which are not supported by MS906.
Finally, MS906BT has the capability to perform coding for covered vehicles.  MS906TS is added TPMS function based on MS906BT.
MS906BT has complete OEM-Specifc scanner Coverage!

Autel DS808 vs Autel MS906BT vs Autel MS908P:

The main difference between the MS906BT and the DS808:

MS906BT communicates with the car via Bluetooth communication (DS808 is hardline)
MS906BT comes with a full kit of OBDI cables for the older models
MS906BT gets software updates (specifically coding updates) earlier then DS808.
The software of the DS808 and MS906BT is very similar. So the DS808 is a great value for money option, but if you want all the bells and whistles, the Autel MS906BT is the way to go.

The main difference between the MS906BT and the MS908P:

The Autel MS908P can perform flashing/reprogramming – newer vehicles have more onboard computers (ECM & TCM) that are programmed with thousands of parameters (control spark, fuel, idle etc).
Updating this software normally requires the car to be sent to dealers
Replacing new parts or changing existing parameters on many of the new vehicles requires flash reprogramming
Autel provides their own server for BMW & BENZ software (free as long as you are active on updates). All other OEM flashing software can be purchased separately and used with the MS908P VCI device.

Autel MaxiSys MS906BT FAQs:

Q: what years vehicles does this all work on ?
A: Work on ALL 1996 and newer vehicles (OBD II & CAN).

Q: Will ms906bt program bmw key and key fob?
A: No, it can't. MS906BT is not supported due to the high level of security of your vehicle. Autel IM608 can do that,you can buy it.

Q: Did this campatible with 1992 oldsmobile bravada 6cyclned awd?
A: Sorry, it can't work on such old vehicles.

Q: Will it do BCM
A: Yes

Q: Does it work with ford diesels 73, 6.0, 6.4, 6.7 L engine
A: Yes it would

Q: Does this scanner read srs on a 1997 mercedes benz s320
A: Yes, this scan tool does read srs on 1997 Mercedes.

Q: What is the difference between the ms908 and ms906bt
A: The difference between MS908 and MS906BT is their hardware,MS908 is run faster then MS906BT,but MS906BT is with a VCI so you can use it to check your car anywhere Within range.And you also can view this link,the vehicle coverage of MS908 and MS906BT

Q: Does it come with a free software update to current model years of all makes?
A: Hi,it comes with 1 year free update.

Q: Does it come with a wireless obd2 adapters
A: Yes it has a bluetooth OBDII dongle, and asst OBDI adapters the bluetooth dongle plugs in to.

Autel MaxiSys MS906BT Specifications:

Operating System: Android™ 4.4.2, KitKat

Processor: Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)

Memory: 2 GB RAM & 32 GB ROM

Display: 8.0" LED capacitive touch screen with 1024x768P resolution

Connectivity: Wi-Fi (802.11 b/g/n); USB: 2.0, Mini USB 2.0; Wireless BT V2.1+EDR Class1, HDMI 1.4a; SD Card (support up to 32 GB)

Camera (rear): Rear-facing, 8.0 Megapixel; AF with Flashlight

Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output: Microphone, Single Speaker; 3-Band 3.5 mm stereo/standard headset jack

Power and Battery: 10,000 mAh 3.7 V lithium-polymer battery; Charging via 12 V AC/DC power supply

Input Voltage: 12 V (9-35 V)

Power Consumption: 5 W

Operating Temperature: -10 to 55°C (14 to 131°F)

Storage Temperature: -20 to 70°C (-4 to 158°F)

Dimensions (W x H x D): 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)

Weight: NW: 1.05 kg (2.3lb.)

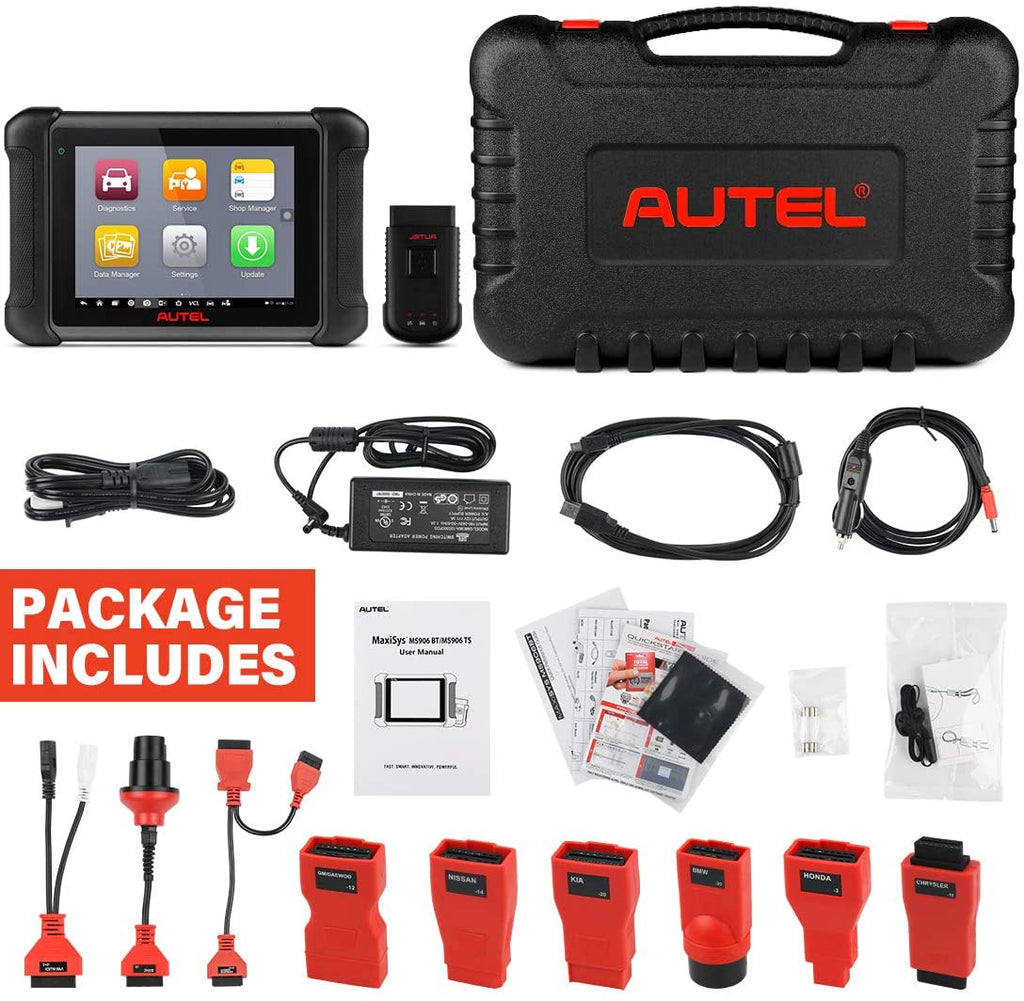

Autel MaxiSys MS906BT Package List:

1 x MS906BT Tablet
1 x Carrying Case
1 x Adaptor for Chrysler-16 (for NA only)
1 x Light Fuse
1 x MaxiVCI V100
1 x Quick reference guide
1 x Adaptor for GM/Daewoo-12
1 x Adaptor for PSA-2
1 x Adaptor for Fiat-3
1 x Adaptor for BMW-20
1 x Adaptor for Benz-38
1 x Adaptor for Kia-20
1 x Adaptor for Mitsubishi/Hyundai-12+16
1 x Adaptor for Nissan-14
1 x Adaptor for Honda-3
1 x Cigarette Lighter
1 x Compact Disc (CD)
1 x AC/DC External Power Adapter
1 x Adaptor for Benz-14 (for EU only)
1 x Adaptor for VW/AUDI-2+2
1 x Soft Cloth
1 x Packing List
1 x Mini USB Cable

If you need the User Manual, please click here to read to download.
