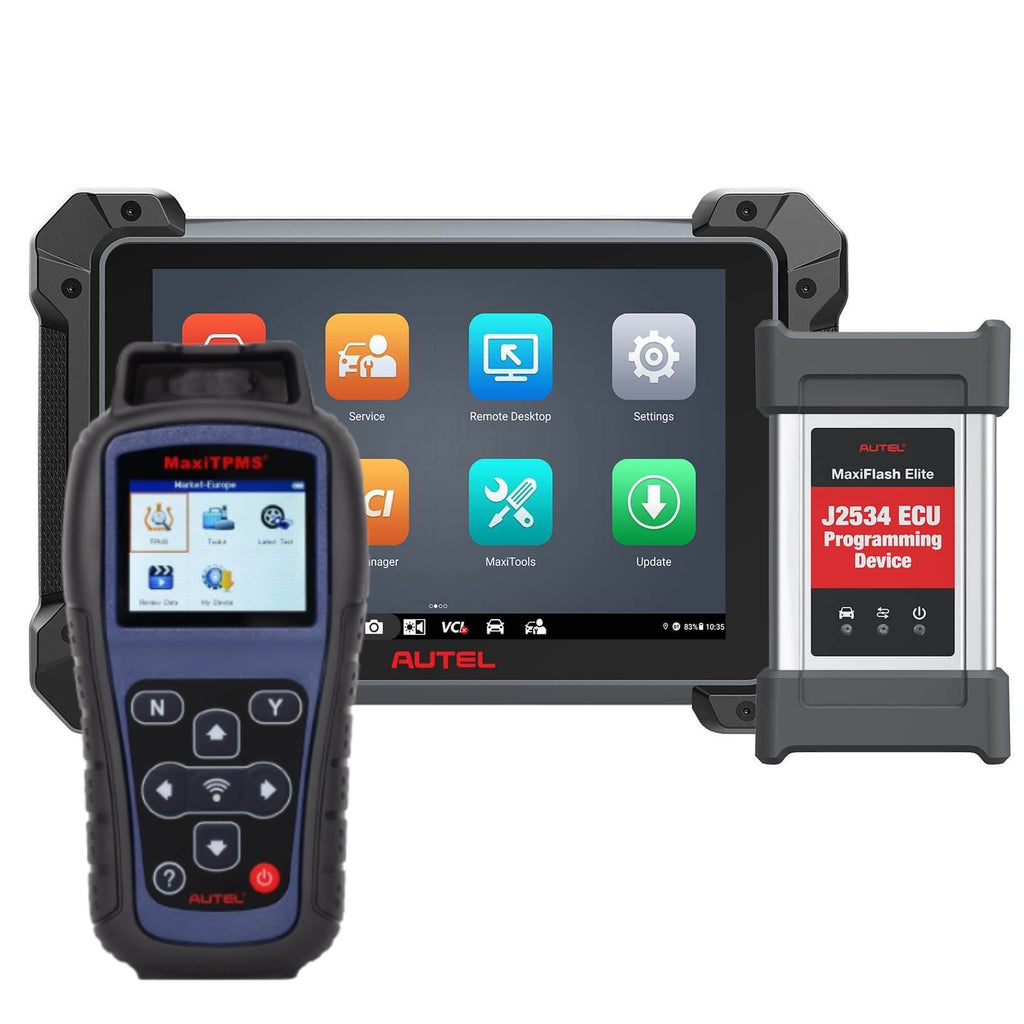

Autel MaxiCOM MK908P DIagnostic Tool + Autel MaxiTPMS TS501 TPMS Diagnostic Tool Bundle

: In stock

: Vehicle Diagnostic Scanners

: Autel

Regular price £1,845.00

Autel MaxiCOM MK908P Description:Autel MaxiCOM MK908P, the upgraded version of MS908P, is a professional diagnostic tool with a 10.1-inch touch screen and...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
Autel MaxiCOM MK908P Description:

Autel MaxiCOM MK908P, the upgraded version of MS908P, is a professional diagnostic tool with a 10.1-inch touch screen and advanced hardware from the Samsung Exynos hexa-core processor and Android 4.4.2 OS for quick and comfortable car diagnostics. Offering comprehensive OE-level diagnostics, ECU coding and BMW/Benz ECU programming, the MK908P is an ideal automotive diagnostic tool for mechanics to troubleshoot the warning lights and fix the vehicle control modules' issues. It combined with the best possible coverage of OE-level diagnostics, and based on the revolutionary multitask-capable Android Operating system, the MaxiCOM organizes information with test instrumentation to help you diagnose symptoms, codes, and customer complaints easily, quickly and efficiently.

Autel MaxiCOM MK908P Highlights:

1. High-End Automotive Diagnostic Tool, Comprehensive OE-Level Diagnostics, Easily, Quickly and Efficiently
2. ECU Coding and J2534 ECU Programming Functions: The diagnostic tool comes with a free J2534 ECU programming device that helps Benz and BMW users replace the existing software/firmware in the ECU, program new ECUs and fix software-controlled driving performance and emission issues.
3. Advanced Hardware: MK908P, as the advanced version of MS908P, features Hexa-Core processor upgraded from Quad-Core, Android4.4.2 OS upgraded from Android4.2, the 10.1" 1920*1200 screen upgraded from 9.7" 1024*769, and 15000mAh battery capacity increased by 4000mAh.
4. BI-Directional Control: The diagnostic tool supports bi-direction control to check the vehicle operating conditions. The bi-directional control of the ECM in Component Test enables the MK908P to transmit control commands to operate the vehicle systems.
5. Additional Service: The automotive scanner is designed to serve users with a rich array of easy-to-use functions and features. The MaxiFix provides you with an online troubleshooter database, and Remote Desk allows you to get help from others via TeamViewer software.

Autel MaxiCOM MK908P Specifications:

Operating System: Android™ 4.4.2, KitKat
Processor: Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory: 2GB RAM & 64GB On-board Memory
Display: 10.1-inch LED screen with 1920x1200 resolution
Connectivity: Wi-Fi (802.11 a/b/g/n/ac); USB: 2.0
BT v.2.1 + EDR; SD Card (Support up to 32GB); HDMI
Camera (rear): 8.0 Megapixel, AF with Flashlight
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output: Microphone; Dual Speakers
3-Band 3.5 mm stereo/standard headset jack
Input Voltage: 12 V (9-24 V)
Power Consumption: 6.5 W
Power and Battery: 15000 mAh 3.8 V lithium-polymer battery; Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Operating Temp: 0 to 50°C (32 to 122°F)
Storage Temp: -20 to 60°C (-4 to 140°F)
Housing: Strong plastic housing with protective rubber boot
Dimensions (WxHxD): 312mm(12.28")x208mm(8.18")x36mm(1.41")
Weight: NW: 1.48kg (3.26 lb)
Protocols: ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW,
SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN,
GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939,
SAE J1708, Fault-Tolerant CAN

Autel MaxiTPMS TS501 Description:

Autel MaxiTPMS TS501 is capable of wirelessly diagnosing TPMS problems as well as activate any known OEM / Universal TPMS sensors, ID clone or reprogram sensors to the vehicle's ECU, and turn off warning lights. The TS501 comes packaged as a complete kit with 8 Autel MX-Sensors, to offer several sensor options for immediate project needs.

Top 3 User-friendly Highlights of Autel MaxiTPMS TS501:

1. TS501 At-A-Glance TPMS Status Screen
The single screen organization allows you to easily read direct feedback from all 4 sensors, clearly understand the status of all TPMS features,compare sensor and ECU data,then instantly pinpoint system faults to identify the fix.This At-A-Glance view of all sensor information easily shows the location of which sensor battery is low and needs to be replaced soon.

2. OBDII Connected TPMS Diagnostics
The TS501 can provide relearn procedures for specific sensors and connect with the OBDII cord to the vehicle's ECU to offer multiple programming options including clone sensor IDs, or auto create ID, or manual write sensor IDs with no sensor re-learn required for sensor positioning.

3. TS501 Easy To Use Software Operation
Performing a basic sensor activation or complex diagnostic tool functions, is easy as following the program options and on-screen display instructions. The TS501 provides code definitions and visual / audio responses to make the operations much easier and more convenient to complete. Download FREE software updates for enhanced diagnostic functions and extended vehicle coverage. Now even your old TPMS tool can perform like new!

Autel MaxiTPMS TS501 Features:

Activates ALL magnetic, frequency and tire deflation triggered sensors using 125KHz continuous or modulated wave signals
Receives both 315MHz and 433MHz signals
Reads data including sensor ID, tire pressure, temperature, battery condition, OE part number, relearn information
Reads / writes sensor ID from vehicle ECU
Reads / clears codes of TPMS system and reset malfunction indicator light
Checks Remote Keyless Entry (Key FOB) for transmissions
Graphs vehicle with 4 or 5 wheels to simplify the diagnostic process
Pre-selection process offers faster activation and diagnostics
Programs vehicle ECU to learn sensor IDs and positions
Provides visual and audible responses to confirm sensors are working properly
On-screen code definitions
Displays Sensor ID and Battery Level and Tire Pressure and Temperature;
Activate TPMS sensors on Domestic, Asian and European vehicles;
Programs / Clones Autel MX-Sensors to replace OEM sensors;
Proper LF signal to prevent being fooled by other RF signals
Incredibly easy to use with intuitive navigation and step-by-step on-screen instructions
Built-in rechargeable Li-polymer battery
Automatic power-off to preserve battery life

Autel MaxiTPMS TS501 Specification:

Display: TFT color display (320 x 240 dpi)
Power: 3.7V Li-polymer battery
Operating Temperature: 0 to 50°C (32 to 122 °F)
Storage Temperature: -20 to 70°C (-4 to 158 °F)

Autel MaxiCOM MK908P Package List:

1 x MaxiCOM MK908P Main Unit
1 x J2534 Box
1 x Main Cable
1 x Standard 2.0 USB Cable
1 x Mini USB Cable
1 x AC/DC External Power Adapter
1 x Ethernet Serial Cable
1 x Cigarette Lighter
1 x Clipper Cable
2 x Light Fuse
1 x BMW Ethernet Cable ( Optional )
1 x USB Ethernet Adapter
14 x OBDI Adapters ( Benz-14 ( Available in Europe Only ); Chrysler-16 ( Available in America Only ); BMW-20; Kia-20; Nissan-14; GM/ Daewoo-12; Honda-3; Fiat-3 ( Available in Europe Only ); PSA-2 ( Available in Europe Only ); Benz-38; VW/ Audi-2+2; Mitsubishi/ Hyundai-12+16 )

Autel MaxiTPMS TS501 Package List:

1pc x TPMS TS501 main unit
1pc x USB Cable
1pc x SD CARD
1pc x Charger
1pc x Magnet
1pc x OBDII Cable
1pc x User's Manual
AutelDiag.co.uk built overseas warehouses, can ship order without tax.

Click "Ship from UK" to purchase items that were sent from UK. Now ONLY ship to UK because of the COVID-19. Usually can be delivered in 2- 5 business days.
Click "Ship from Czech" to purchase items that were sent from Czech. Mainly ship to European countries, no UK included. Usually can be delivered in 5- 10 business days.
We will ship the other items from Shenzhen, China, that don't mark where ship from. Usually can be delivered in 7- 15 business days.

Attention:

1. Affected by the new COVID-19, logistics will be delayed.
2. From January 1, 2021, because of BREXIT, the transportation between the United Kingdom and other EU countries can cause taxation issues.

Please click here to read more details about Shipment and Delivery.
Please click here to read more details about Return Policy.

If you have any questions, welcome to contact us (Email to Sales@AutelDiag.co.uk).
