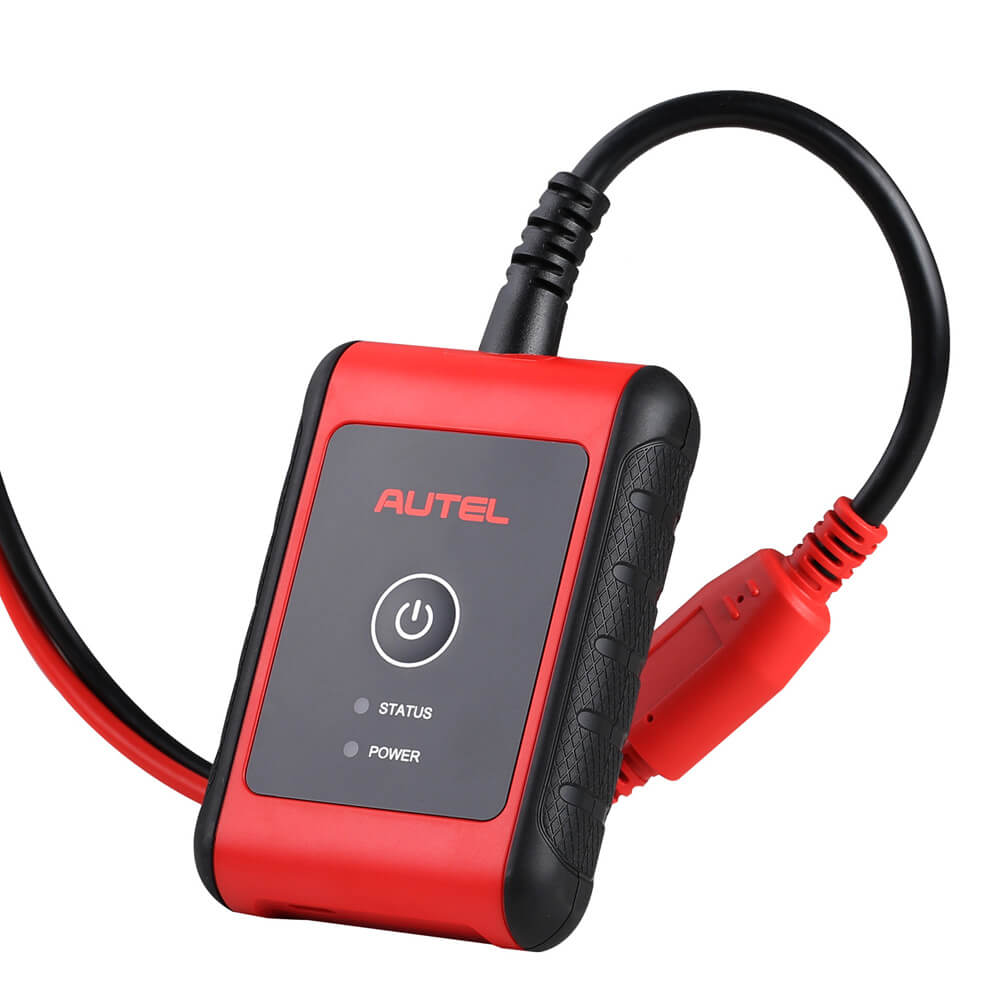

Autel MaxiBAS BT506 Battery Tester Electrical System Analysis Tool for Battery Health Support CCA CA SAE EN IEC DIN JIS MCA, Test Flooded, AGM, AGM Spiral, EFB GEL Batteries

: In stock

: Vehicle Battery Testers

: Autel

£130.00 £140.00

Note:The Autel MaxiBAS BT506 Does Not Have a Screen!To perform testing and display test results the Autel MaxiBAS BT506 must be used with an...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Note:

The Autel MaxiBAS BT506 Does Not Have a Screen!
To perform testing and display test results the Autel MaxiBAS BT506 must be used with an Autel MaxiSys Tablet or Other Smart Device (Free iOS or Android Apps Available).
Autel MaxiBAS BT506 Description
Autel MaxiBAS BT506 Description:

The Autel MaxiBAS BT506 is a battery and electrical system analysis tool that use as Adaptive Conductance an advanced battery analysis method, to produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. The Autel MaxiBAS BT506 enables technicians to view the health status of vehicle's battery and electrical system. Download the free and easy-to-use mobile app, available for iOS and Android devices, to use with the Autel MaxiBAS BT506 to perform testing and display test results.

Autel MaxiBAS BT506 Features:

Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries
Test 6- and 12-volt batteries: 100 - 2000 CCA
Test 12- and 24- cranking/charging systems
Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA

Main Features of Autel MaxiBAS BT506

The Autel MaxiBAS BT506 is a new app-based battery analysis tool developed by Autel. Download the free and easy-to-use mobile app, available for iOS and Android devices, and use it with the Autel MaxiBAS BT506 to perform testing and display test results.
Autel MaxiBAS BT506 Description

Autel MaxiBAS BT506 Description

Autel MaxiBAS BT506 has positive and negative alligator clamps which are polarity protected, so even if you reverse the clamps and put the negative on the positive terminal, it is OK. In fact, the LED on the tester is color coded to alert the users of connection and testing status, so the testers will flash red to alert you that you have made the error.
Autel MaxiBAS BT506 Description
The tester is bluetooth enabled and that's how it shares the test information with the app.

Autel MaxiBAS BT506 Specification:

Item: Autel MaxiBAS BT506
Connectivity: USB 2.0, Type C
Bluetooth: V3.0 BR/EDR+ V4.2 LE Dual-Mode
Input Voltage: 5 V DC
Working Current: < 150 mA at 12 V DC
Internal Battery: N/A
CCA Range: 100 to 2000 A
Voltage Range: 6 to 36 V
Working Temperature: -10°to 50° C (14° to 122° F)
Storage Temperature: -20° to 60° C (-4° to 140° F)
Dimension (L x W x H): 107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included)
Weight: 320 g (0.7 lb.)

Autel MaxiBAS BT506 Package list:

1pc x Autel MaxiBAS BT506
1pc x User Manual
