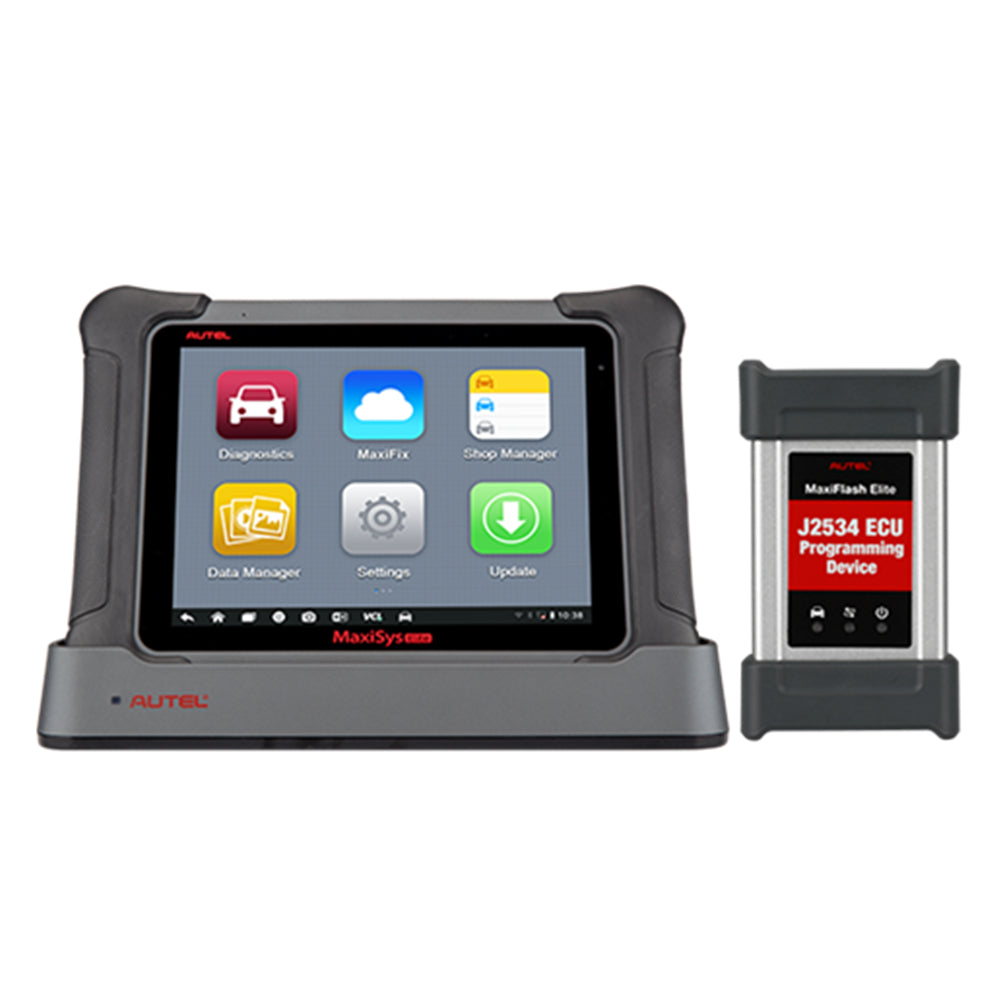

AUTEL MaxiSys Elite with J2534 ECU Programming Box

: Unavailable

: Auto Diagnostic Tools

: Autel

Regular price £2,015.00

Autel MaxiSys Elite Description: The Autel MaxiSys Elite, the newest addition to the MaxiSys line of highly advanced smart diagnostic tools, is...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
Autel MaxiSys Elite Description:

The Autel MaxiSys Elite, the newest addition to the MaxiSys line of highly advanced smart diagnostic tools, is based on the fast and intuitive Android operating system. Powered by NVIDIA's Tegra 4, the world's fastest mobile processor, its visually stunning 9.7" Retina display offers ultra-high resolutions up to 2048x1536 and an optimized array of sophisticated and powerful applications. The MaxiSys Elite provides extended battery life and intelligent power saving. The MaxiSys Elite offers a super-sensitive capacitive screen able to respond to gloved, moistened, and even greasy fingers! The MaxiSys Elite rapidly performs every job from comprehensive vehicle diagnostics & analysis to advanced ECU programming. 2x faster than any comparable device, the MaxiSys Elite provides extended battery life and intelligent power saving.

Autel MaxiSys Elite Highlights:

1. 100% Original Autel Brand Tools. High Quality.
2. One Year Free Update Online on Autel Official Website, after one year, need to purchase 1 year update service.
3. Extensive Vehicle Coverage: Covers more than 80 US domestic, Asian and European makes and models
4. Autel MaxiSys Elite rapidly performs every job from comprehensive vehicle diagnostics & analysis to advanced ECU programming.
5. 2X faster than any comparable device, the MaxiSys Elite provides extended battery life and intelligent power saving.
6. The MaxiSys Elite offers a super-sensitive capacitive screen able to respond to gloved, moistened, and even greasy fingers!
7. The ergonomically angled docking station provides optimum visibility and convenient charging that eliminates power concerns.
8. Handheld 9.7”Touch Screen highly advanced smart diagnostic tools from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
9. Supported Protocols: ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L lins, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708V

Autel MaxiSys Diagnostic Tools Comparison:



MaxiSys

Elite

MaxiSys

CV

MaxiSys

MS908S Pro

MaxiSys

MS908S

MaxiSys

906TS

MaxiSys

906BT

MaxiSys

906

Function















All Systems DTC Scan

Service Function

Bi-Directional Control

Auto VIN Technology

ECU Coding

--

--

ECU Programming

--

--

--

--

--

MaxiFix Cloud-Based Info System

Data Manager

Shop Manager

Remote Support

Pre-scan Report & Post-scan Report

North America Only

--

North America Only

North America Only

North America Only

North America Only

Print Feature

Multi-language Support

Coverage















Domestic/Asian/European Coverage(1996-Present)

Hardware















Display Size

9.7"

9.7"

9.7"

9.7"

8"

8"

8"

Wireless VCI

MaxiFlash Elite

MaxiFlash Elite

MaxiFlash Elite

Wireless Diagnostic
Interface

MaxiVCI V100

MaxiVCI V100

--

Battery Life

15400 mAh 3.7 V

11000 mAh 3.7 V

11000 mAh 3.7 V

11000 mAh 3.7 V

10000 mAh 3.7 V

10000 mAh 3.7 V

5000 mAh 3.7 V

Memory Storage

64GB

64GB

64GB

64GB

32GB

32GB

32GB

Connector Kit

Options















TPMS

--

--

--

--

--

--

Oscilloscope

--

Inspection Camera

--

ADAS

--

--

Autel MaxiSys Elite Specifications:

Operating System: Android 4.4.4 KitKat
Processor: NVIDIA Tegra®4(4-PLUS-1 Quad-core Processor)1.8GHz with ARM Cortex–A15 CPU
Memory: 2GB RAM&32GB Embedded Memory
Display: 9.7”Retina display with 2048X1536 resolution&Capacitive touch screen
Connectivity: 802.11a/b/g/n/ac WIFI; Version 2.1 3Mbs Bluetooth; RJ45 Ethernet Connection; 3.0 USB(2.0 Compatible); HDMI 1.4a; SD Card(Support up to 32GB)
Camera: Rear:8.0 Megapixel,Autofocus with Flashlight
Front:2.0 Megapixel
Sensors: Ambient Light Sensor; G-sensor
Audio Input/Output: Microphone; Dual Speakers
3-Band 3.5 mm stereo/standard headset jack
Power and Battery: 3.7V/15000mAH Lithium-polymer battery; DC/12V/3A Power Supply
Input Voltage: DC/12V/3A
Power Consumption: Max 20W
Operating Temperature: -10 to+55°C
Storage Temperature: -20 to+70°C
Dimensions(W x H x D): 309 X 225 X 35(mm)
Weight: 1.59 kg
Protocols: ISO 9142-2, ISO 14230-2, ISO 15765-4, K/ L line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708V

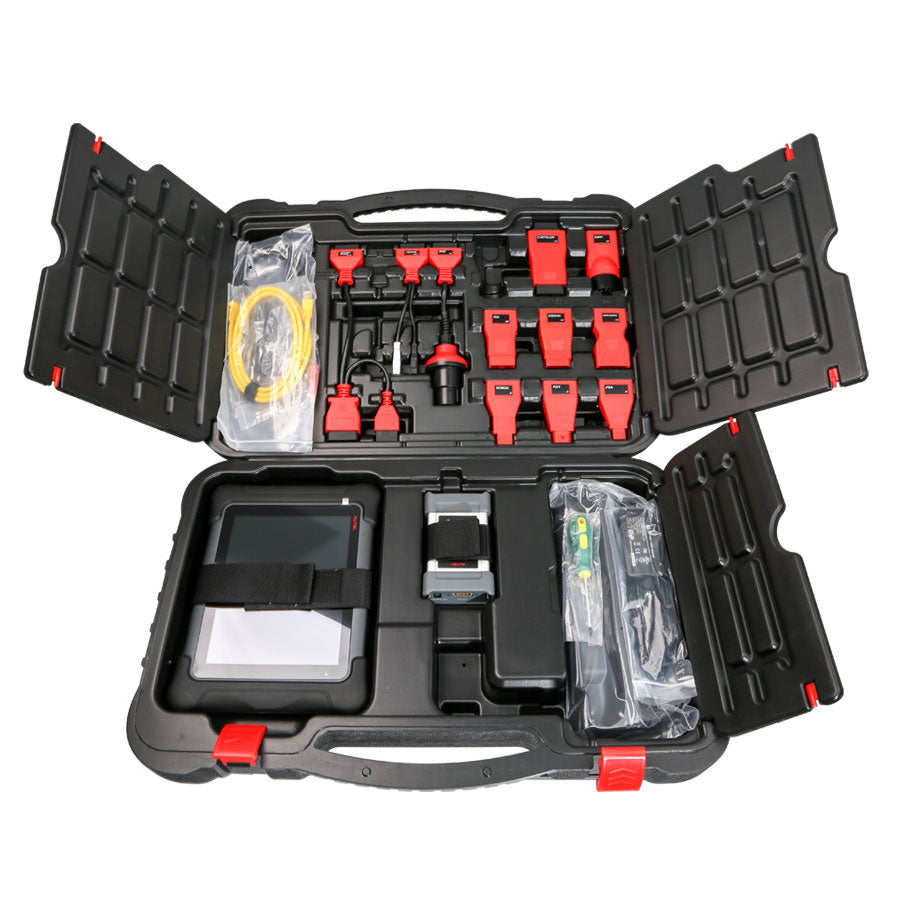

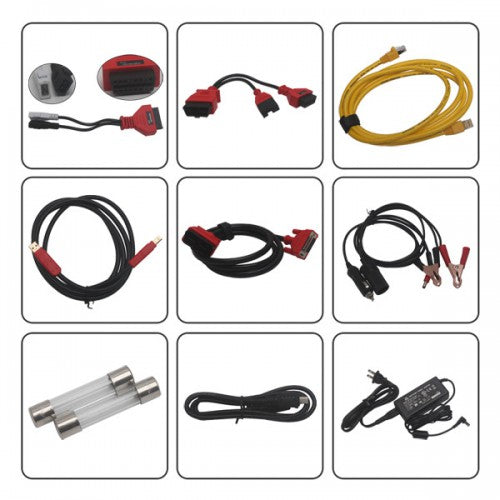

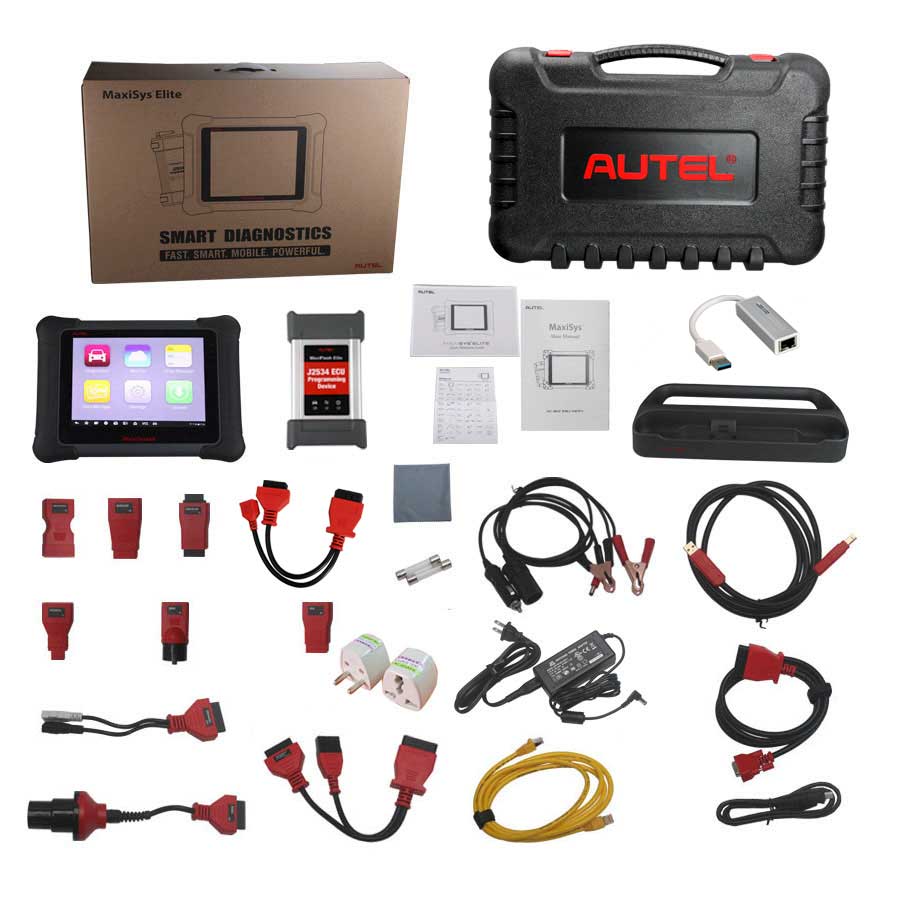

Autel MaxiSys Elite Package List:

1pc x Maxisys Elite Interface
1pc x Lighter Fuse
1pc x GM/Daewoo-12 adaptor
1pc x BMW-20 adaptor
1pc x Benz-38 adaptor
1pc x Kia-20 adaptor
1pc x Fiat-3 adaptor
1pc x PSA-2 adaptor
1pc x Mitsubishi/Hyundai-12+16 adaptor
1pc x Nissan-14 adaptor
1pc x Honda-3 adaptor
1pc x USB Cable
1pc x Cigarette Lighter
1pc x Compact Disc (CD)
1pc x AC/DC External Power Adapter
1pc x Clipper Cable
1pc x Screwdriver
1pc x VW/AUDI-2+2 adaptor
1pc x Chrysler-16
1pc x Benz-14
1pc x Mini USB Cable
1pc x Ethernet Serial Cable
