[UK/EU Ship] Autel MaxiSys Ultra Automotive Full System Diagnostic Tool OBD2/ CAN Bi-Directional Dual Wi-Fi And Advanced VCMI Get Free BT506/ MSOBD2KIT

Availability: In stock

Product type: Auto Diagnostic Tool

Vendor: Autel

Regular price £4,299.00

Note: 1. 1 Year Free Update Service: When the 1 year free update expires, please click here to purchase an extra 1...

Autel MaxiSys Ultra

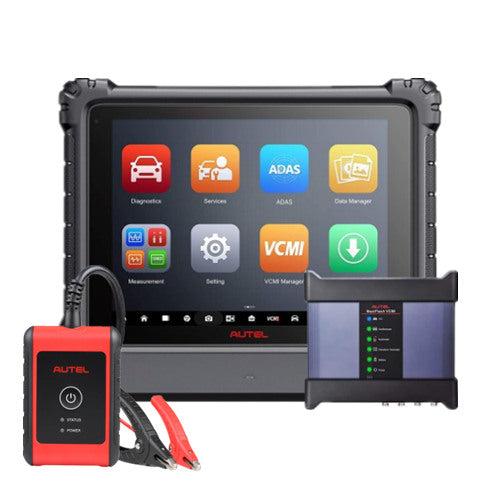

Autel MaxiSys Ultra + Free BT506

Autel MaxiSys Ultra + Free MSOBD2Kit

Subtotal: £4,299.00

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Category:

Note:

1. 1 Year Free Update Service: When the 1 year free update expires, please click here to purchase an extra 1 year update service.
2. Only Support English
3. No IP Limitation problem: Autel MaxiSys Ultra can be used in anywhere. Don't need to worry about the Tablet blocking.
4. Ship from UK/ EU no Tax, usually can be delivered in 5-7 business days without Tax.
5. To confirm compatibility before purchase, please email to Sales@AutelDiag.co.uk these information: Vehicle model and year, VIN, Engine code and functions needed.

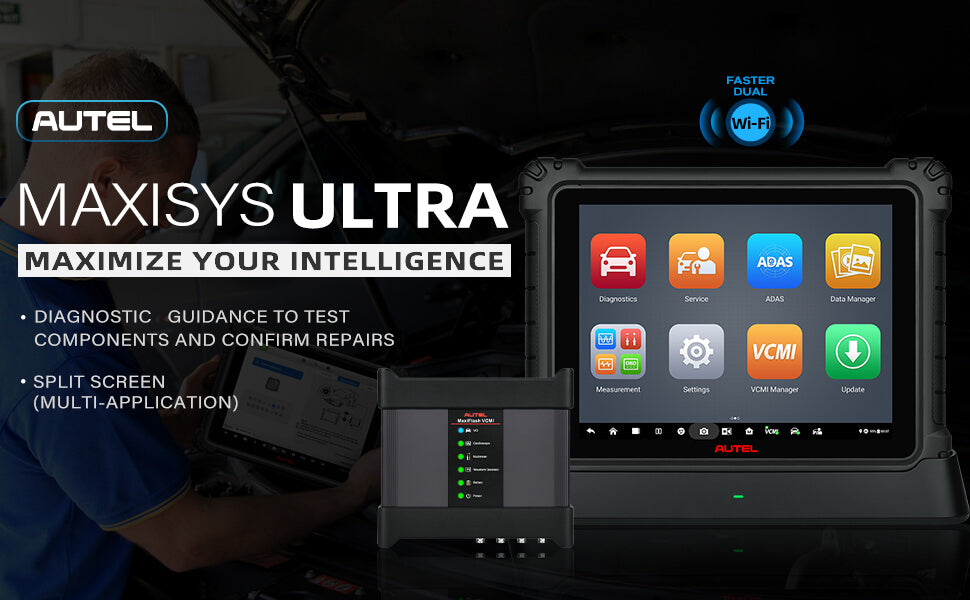

Autel MaxiSys Ultra Description:

The MaxiSys Ultra is Autel’s most ambitious diagnostics tablet designed to maximize technician intelligence. It features a 13-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory, all powering the new split-screen multi-application navigation to provide diagnostic guidance and test components to confirm repairs. Combined with the dynamic topology module mapping, enhanced AutoSCAN features. The new MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The convenient docking station featured ensures you always have the power to scan.

Autel MaxiSys Ultra Highlights:

1. Updated version of MK908P/MS908P/Elite/MS909/MS919; All-in-one comprehensive scanner for large repair workshops.
2. D-PDU/ SAE J2534/ RP1210/ DoIP/ CAN FD protocols are supported; Wider vehicle coverage for 99.99% makes in the market.
3. 5-in-1 VCMI with functions of VCI, oscilloscope, waveform generator, multimeter, and CAN BUS tester.
4. Advanced Programming and Coding, ECU upgrading & downgrading, ECU module matching & replacement, etc.
5. 36+ service functions to fix all car-related problems, no need to turn to other scan tool or gurus.
6. OE-level Topology Module Tree, helping you viewing the vehicle's crux much more intuitively.
7. Split-screen multi-application navigation with super-fast running speed, greatly improving your work efficiency.
8. 10+ highly advanced functions: Active Test/ Guided Functions/ Personalization/ Modification, etc.

Autel MaxiSys Ultra Features:

1. Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
2. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
3. Automatic system and software updates with real-time push message notifications via internet
4. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
5. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
6. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Autel MaxiSys Ultra Functions:

30+ Maintenance Functions Greatly Improve Work Efficiency
20 Commonly Used Reset Functions for Fast Maintenance or Repairs:
Oil Reset, EPB, BMS, ABS Bleed, TPMS, Airbag Reset, DPF Reg., IMMO Service, Injector Coding, SAS Calibration, Suspension Calibration, Throttle Adaption, ABS/SRS, Gear Learning, Sunroof Initialization, Seats Calibration, Language Change, Headlight Matching, A/F Setting, WIN DR Roof, Odometer, CHG Tire Size, Cylinder, Turbocharging, Limit, Trans Adaption.

10+ Advanced Functions for Different Vehicle Models:
Neutral Gear Position Learning, Torque Sensor Adjustment, Signal Check, Yaw Rate Sensor (YRS) Learn, Clutch Pedal Position Learn, Cylinder Power Balance, Component Matching, Stop/ Start Reset, Transport Mode, Auto-Door Lock, etc.

1. Oil Reset, to reset the oil service lamp for the engine oil life system; 2. EPB Reset, to reset the brake pad after replacing the brake pad.
2. ABS Bleeding, to perform various bi-directional tests of Anti-lock Braking System;
Injector Coding, to write the new code to the ECU after replacement of injector.
3. Suspension Calibration, to adjust the height of the body; SAS Calibration, to calibrate the steering angle after replacement.
4. BMS Reset, to perform a resetting operation on the monitoring unit of the vehicle battery.

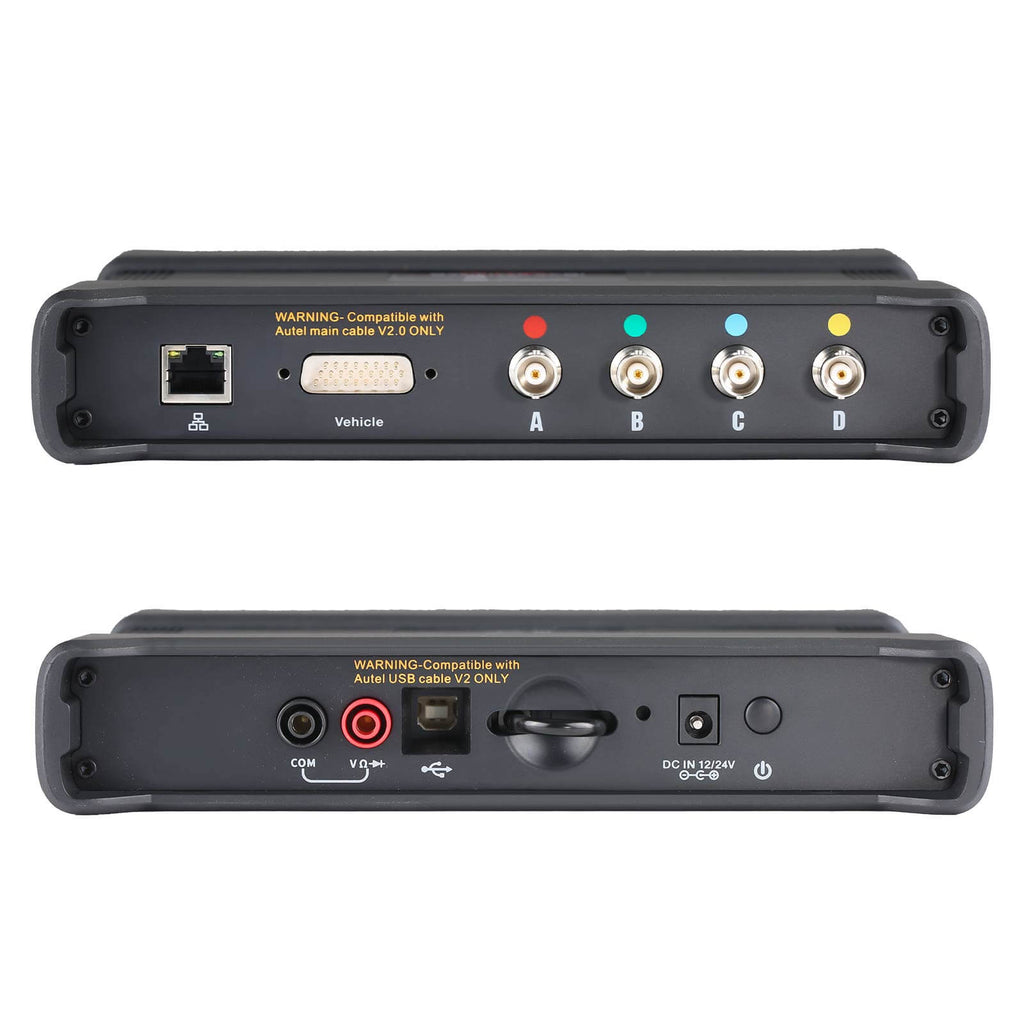

5-in-1 VCMI, Diagnose & Program Vehicles More Efficiently
1. 5-in-1: Except working as a diagnostic tool, it also functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester.
2. More Advanced than J2534: With the 3 diagnostic protocols (D-PDU/ SAE J2534/ RP1210), Ultra can work with more OEM diagnostic tools and diagnose & program more vehicles than J2534 programming tools.

Advanced ECU Programming & Coding
As we all know, it has now become more and more necessary to perform programming & coding services in the aftermarket than ever. e.g., replacing a module, replacing the existing software or firmware in the ECUs, fixing software-controlled drivability issues and emission issues, etc. There are two general types of programming operations:

Coding -- also known as Teach-in Program, or Component Adaptation, is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts.
Programming -- downloads the latest version of software from the online server database through Internet access (this procedure is done automatically when the tablet is connected to the Internet, so there is no need to check for software updates yourself), and reprograms the newest version into the vehicle's ECU.

Bi-Directional Control (Active Test)
Accurately figure out whether a specific system, component, or a subsystem in vehicles goes well and locate the problem by interactively operating and testing the vehicle’s related actuators; Compatible with most vehicle models on the market.

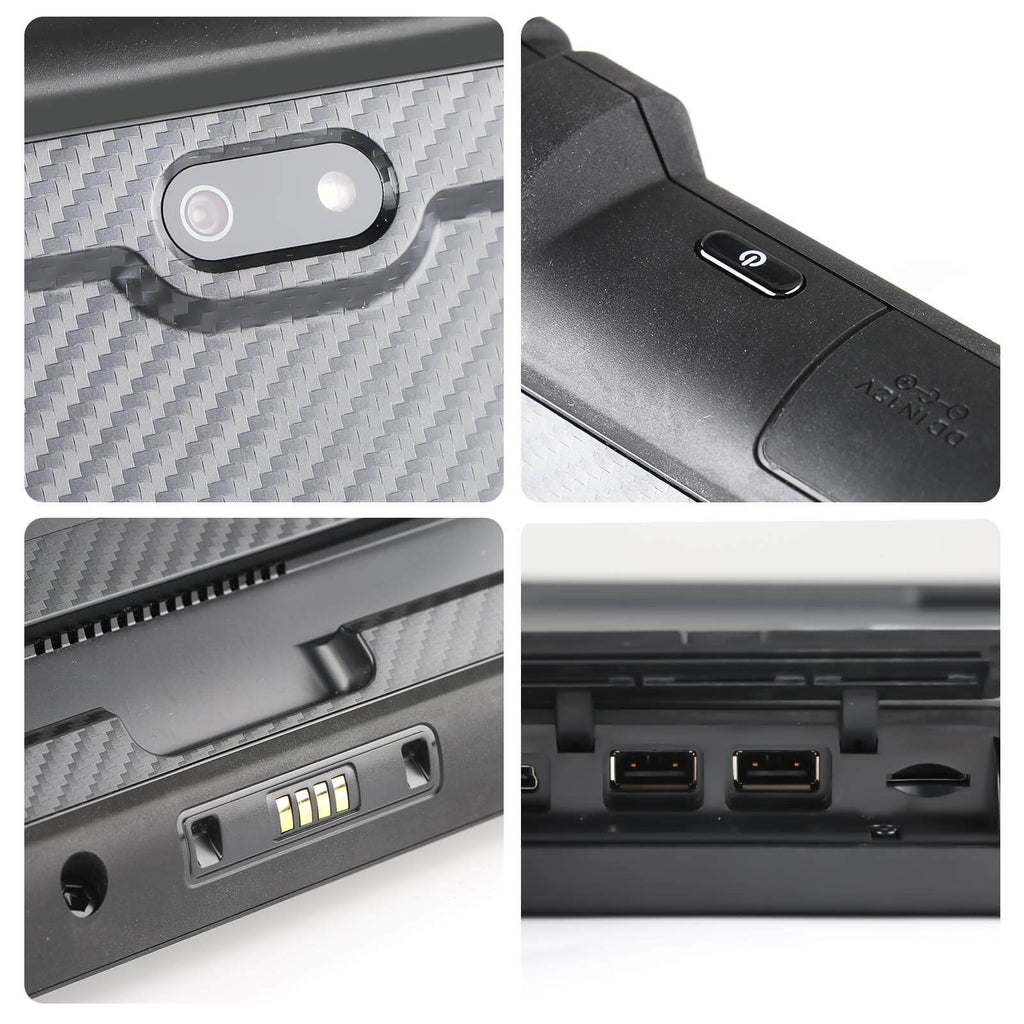

Autel MaxiSys Ultra Specification:

Operating System: Android 7.0
Processor: Samsung Exynos8895V octa-core Processor ( 2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory: 4GB RAM & 256GB On-board Memory
Display: 12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
Connectivity: WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO); BT v.2.1 + EDR
GPS; USB 2.0 (Two USB HOST Type A, one USB mini device)
HDMI 2.0; SD Card (Support up to 256GB)
Camera: Rear: 16 Megapixel, Autofocus with Flashlight; Front: 5 Megapixel
Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output: Microphone; Dual Speakers; 3-Band 3.5 mm stereo/standard headset jack
Power and Battery: 18000mAh 3.8 V lithium-polymer battery; Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage: 12V/3A Adapter
Operating Temp: 0 to 50°C (32 to 122°F)
Storage Temperature: -20 to 60°C (-4 to 140°F)
Dimensions (WxHxD): 366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
Weight: 2.18kg (4.81 lb.)
Supported Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can ( GMLAN ), ISO-11898-2, ISO-11898-3, SAE-J2819 ( TP20 ), TP16, ISO-9141, ISO-14230, SAE-J2610 ( Chrysler SCI ), UART Echo Byte, SAE-J2809 ( Honda Diag-H ), SAE-J2740 ( GM ALDL ), SAE-J1567 ( CCD BUS ), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 ( VAG KW81 ), KW82, SAE J1708, SAE-J1850 PWM ( Ford SCP ), SAE-J1850 VPW ( GM Class2 )

Autel MaxiSys Ultra Package list:

1pc x Autel MaxiSys Ultra Main Unit
1pc x MaxiFlash VCMI
1pc x Docking Station
1pc x Main Cable V2.0
1pc x USB 2.0 V2
1pc x AC/DC Adaptor (12V)
1pc x Cigarette Lighter
2pcs x Light Fuse
1pc x Clipper Cable
4pcs x Scope Test Lead
2pcs x Multimeter Test Lead
2pcs x Secondary Ignition Pickup
2pcs x Attenuator 20:1
4x6 x Breakout Lead
1x2 x Multimeter Probe
2pcs x Flexible back-pinning Probe
5pcs x Back-pinning Probe
2pcs x Back-pinning Probe Screw
20pcs x Back-pinning Probe Replacement Needle
2x2 x Small Crocodile Clip
1x2 x Large Dolphin Clip
1pc x Quick Reference Guide
1pc x Packing List
1pc x Soft Cloth
1pc x Tool Box
1pc x Carrying Case
