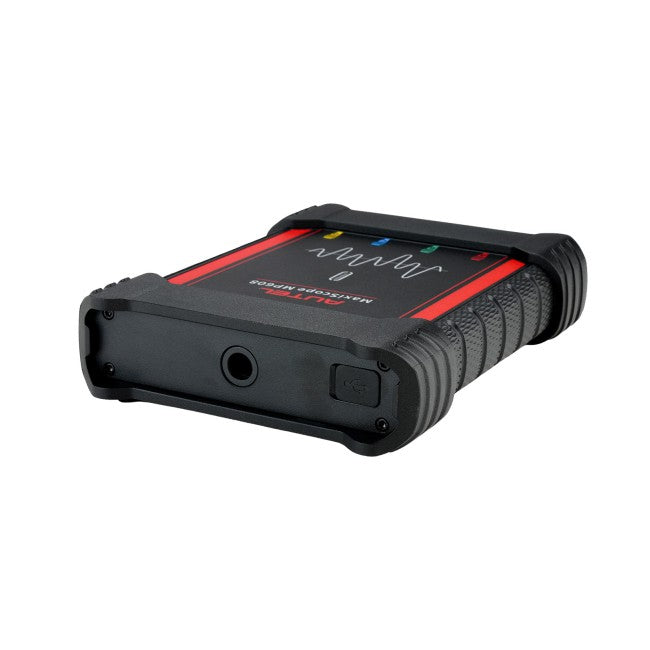

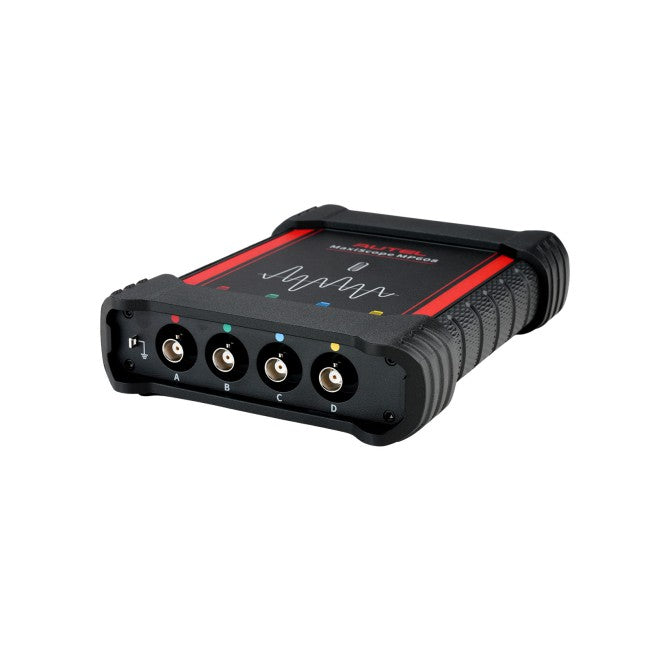

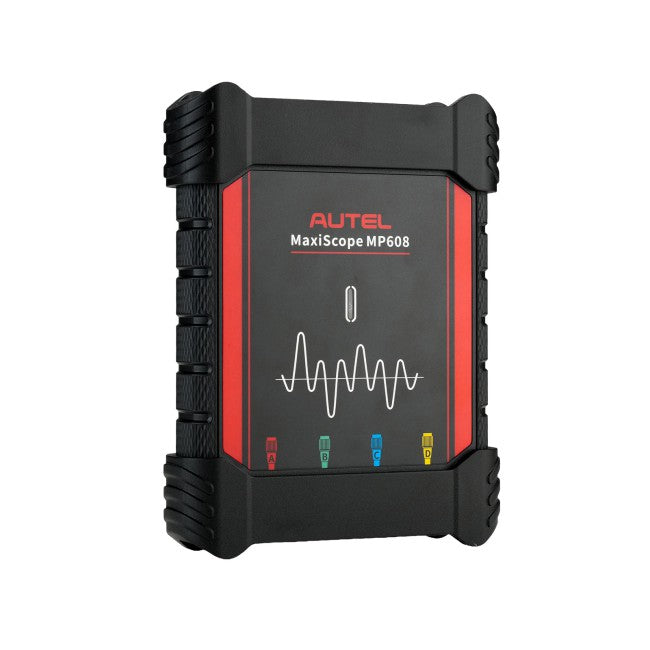

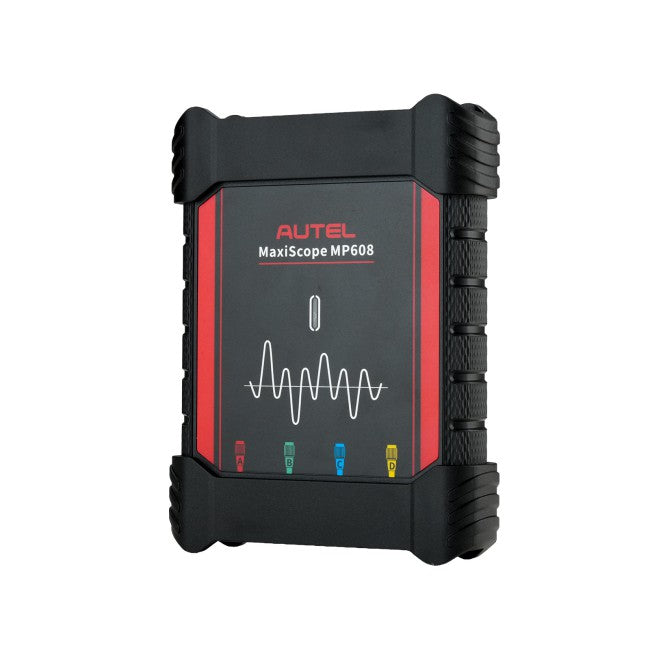

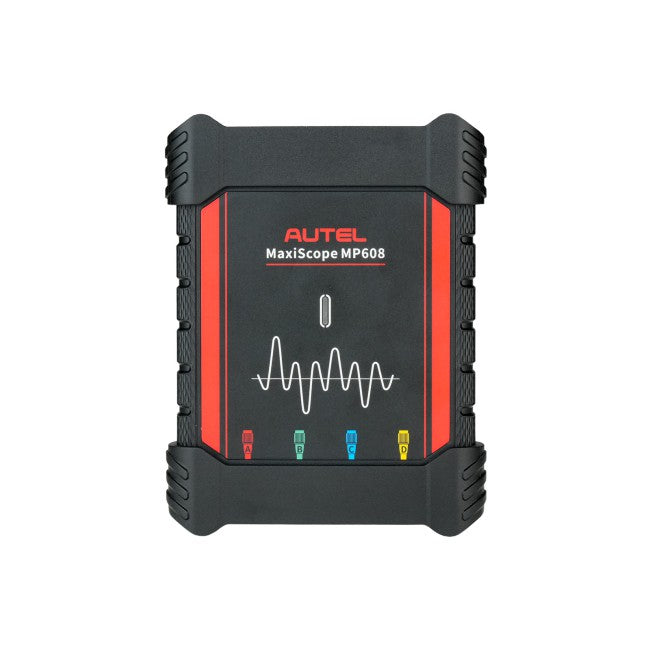

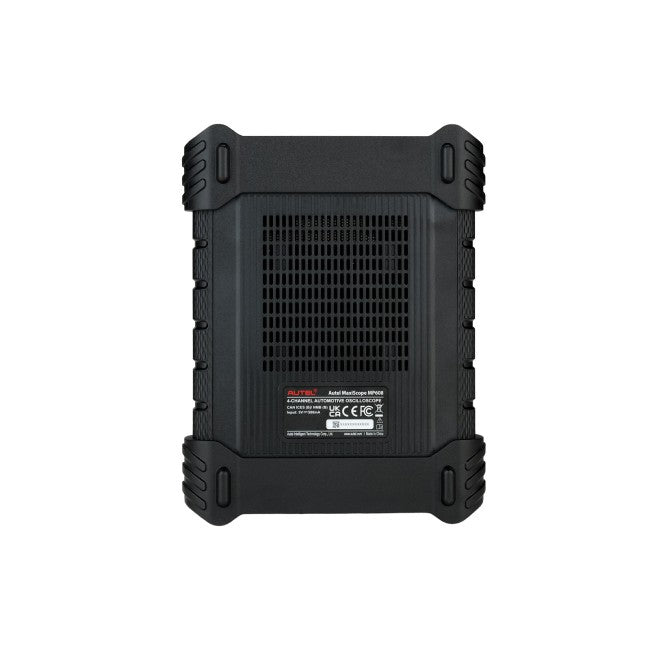

[New Arrivals] AUTEL MaxiScope MP608 4-Channel Automotive Oscilloscope for Advanced Vehicle Electrical Diagnostics

[New Arrivals] AUTEL MaxiScope MP608 4-Channel Automotive Oscilloscope for Advanced Vehicle Electrical Diagnostics

Availability: In stock

Product type:

Vendor: Autel

Regular price £515.00

Product Introduction:Autel MaxiScope MP608 is a professional 4-channel automotive oscilloscope that transforms a Windows PC or compatible MaxiSYS tablet into a powerful...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Category:

Product Introduction:

Autel MaxiScope MP608 is a professional 4-channel automotive oscilloscope that transforms a Windows PC or compatible MaxiSYS tablet into a powerful waveform diagnostic platform. Featuring 12-bit resolution and ±1% measurement accuracy, the MP608 delivers precise signal capture for advanced electrical, electronic, and network diagnostics. Designed to simplify complex troubleshooting, it offers advanced trigger actions for intermittent fault detection, customizable math channels, serial bus decoding, and guided automotive test procedures. Compatible with Autel's Lastest-Generation Tablets, including MaxiSYS MS906 MAX, MS906PRO2-TS, MS909S II, MS908CV II, MS909CV, and Windows PCs, the MP608 provides technicians with a complete solution for analyzing vehicle signals, identifying root causes faster, and improving diagnostic confidence. Covered by a one-year limited warranty.

Product Features:

Compatible with Autel's Lastest-Generation Tablets, including MaxiSYS MS906 MAX, MS906PRO2-TS, MS909S II, MS908CV II, MS909CV, and Windows PC.

12-Bit Resolution with ±1% Measurement Accuracy for precise waveform capture and analysis.

Advanced Trigger Actions automatically capture intermittent and hard-to-reproduce faults.

Custom Math Channels simplify complex waveform calculations and signal analysis.

Automatic Probe Configuration reduces setup time and minimizes configuration errors.

Built-In Automotive Test Library with guided procedures, reference waveforms, and connection diagrams.

Serial Bus Decoding for multiple protocols. including CAN, CAN FD, LIN, FlexRay, UART, and I²C.

Complete Diagnostic Kit Included with test leads, ignition pickup, probes, attenuators, carrying case, and accessories.

Free online software update through the Internet

Product Specifications:

Channels: 4

Vertical resolution: 12 bits

DC accuracy: ±1%

Sensitivity : 10mV/div to 40 V/div

Input ranges (full scale): ±50mV to ±200V in 12 ranges

Bandwidth: 20 MHz

Buffer Memory: 32M Samples

Timebase ranges: 100ns/div to 1ks/div

Maximum Sampling Rate (single shot): 1 channel in use 80 MS/s ; 4 channels in use 20 MS/s

PC interface: USB 2.0

Power requirements: Powered from USB port

Dimensions: 184 x 144 x 41mm (approx. 7.2 x 5.7 x 1.6 in)

Weight: 560 g (approx. 1.23 lb)

Operating temperature: -10 to +50°

Storage temperature: -20~+60°C

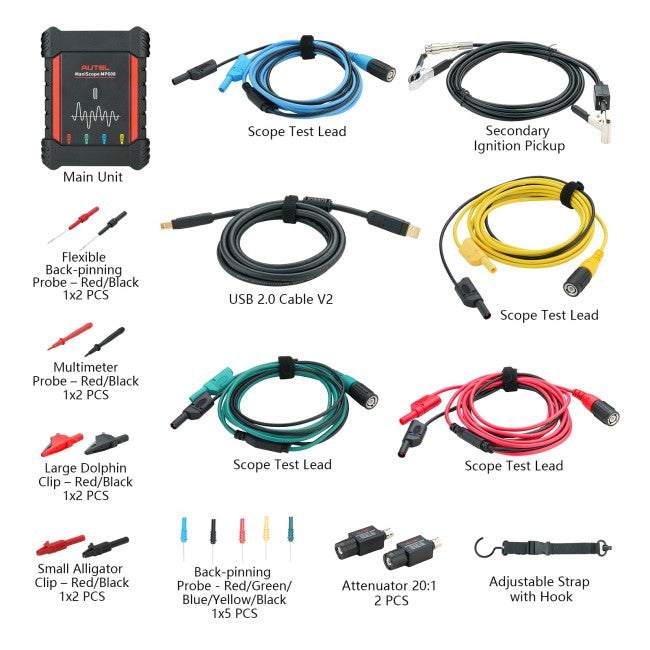

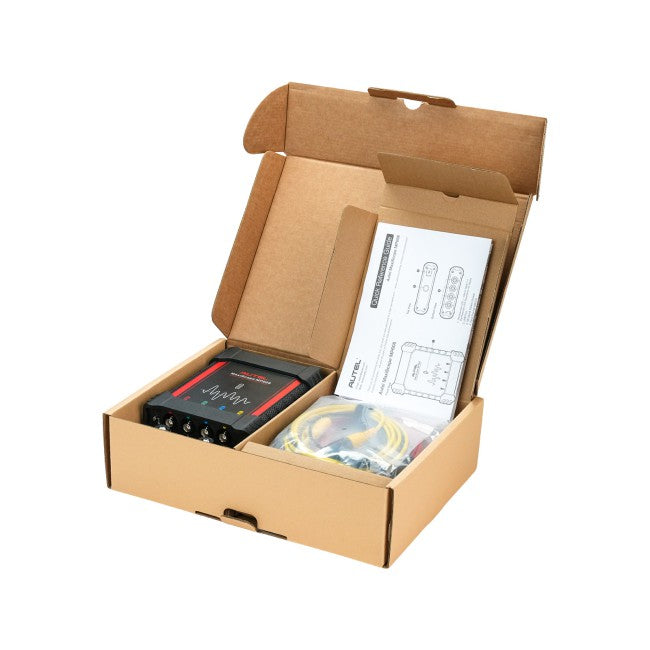

Package includes:

1pc x main unit

4pcs x scope test leads

1pc x adjustable strap with hook

2pcs x large dolphin clips red/black

2pcs x attenuator 20:1

2pcs x small alligator clips red/black

2pcs x multimeter probes red/black

1pc x secondary ignition pickup

5pcs x back-pinning probe red/green/blue/yellow/black

2pcs x flexible back-pinning probe red/black

1pc x USB 2.0 cable V2

1pc x packing list

1pc x quick reference guide
