Quick Overview

Autel MaxiIM IM508 Description:

Autel MaxiIM IM508 is a professional car key programmer and immobilizer that provides extraordinary services on immobilizer systems. It could perform all keys lost, add key, key learning, remote control add, remote control learning, key chip read and write and other car related functions. The IM508 pro scan tool is capable of performing OE-Level diagnosis on all car electronic systems, covering wide vehicle coverage of over 80 American, European and Asian vehicles makes and models. The automotive diagnostic scanner also comes with most commonly used service functions like oil reset, EPB, SAS Calibration, TPMS Relearn, BMS and DPF Regeneration and etc.

Autel MaxiIM IM508 Highlights:

1. Multiple Languages Supported: English, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian, Traditional Chinese
2. No IP Limitation, can be delivered to Any Countries, can be used in Anywhere.
3. One Year Free Update online On Autel Official Website. When the 1 year free update expires, need to purchase the extra one-year update service to keep updating it.
4. Powerful Cortex-A9 processor
5. Android Operating System for fast boot-up and multitasking
6. Function IMMO+ Diagnose: Powerful combination of key programming/all system diagnostics/ advanced maintenance services
7. Vehicle Supported: Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
8. Advanced maintenance services: including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn

Notice:

If you want to release more functions to reach what IM608 does, you can buy Autel XP400 Adapter together

Comparison with Autel IM608:

With XP200 Key Programmer, IM508 Key Programmer Tool has all IMMO functions as IM608 except for Benz 3rd Generation IMMO, BMW CAS4 Key Learning and VW/Audi MQB(VDD & JCI) Add Key, IMMO V A4/A5/Q5 2015+ Key Learning availability. With nearly 1/3 of its price, IM508 is a perfect affordable IMMO tool alternative for Autel IM608. IM508 is a professional automotive key programming tool that combines key programming, all car systems diagnosis and advanced service functions

Autel MaxiIM IM508 Features:

1. Powerful Cortex-A9 processor
2. 7" 1024x600 LCD capacitive touchscreen
3. Internal reliable 32GB Memory
4. Android Operating System for fast boot-up and multitasking
5. Powerful combination of key programming/all system diagnostics/advanced maintenance services
6. Smart Mode for guided and automated key learning
7. Expert Mode for advanced key learning
8. Read PIN/CS (all key lost) , key generation, key learning, remote learning
9. IMMO ECU reset/adaptation, refresh/coding
10. Transpronder read/write, EEPROM/ MCU read/write
11. Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
12. Advanced maintenance services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn

Autel XP400 Pro Description:

The Autel XP400 Pro key and chip programmer, compatible with the IM508 and IM608, reads/writes and learns keys to the vehicle. The Autel XP400 Pro enables programming of infrared keys for Mercedes vehicles and IC Chip keys on late model Hyundai KIA vehicles. The Autel XP400 Pro also performs EEPROM-data functions needed for European vehicles. The Autel XP400 Pro supports Data Read/ Write of 3,000 Plus Chip Types (inc. EEPROM, engine ECU, MCU, IMMO ECU).

Highlights of Autel XP400 Pro:

XP400 Pro is an Advanced All-in-One Key Programmer
One Year Free Update Online on Autel Official Website
Could Be Used with Autel IM508 and Autel IM608, Also IM100 and IM600 as well
(Notice: XP400Pro is compatible with IM100 / IM600. The only thing the IM100 and IM600 will not have when used with XP400Pro is the 4 channel Labscope software and AutoAuth)
Supports Key Renewal on 11 Key Types with Additional Adapters - IMKPA, Key Programming Accessories Kit

Why You Need XP400 Pro?

Expanded EEPROM functions for more component access
170+ types Odometer component reading functions
180+ Immobilizer ECU component types
40+ Engine ECU component types
2000+ MCU component types
440+ EEPROM component types
Compatible with IM508 and IM608
Includes 1-Year Warranty
Free Software Updates for Life of Tool

Autel APB112 Smart Key Simulator Description:

Autel APB112 smart key simulator is used to collect the data sent from the ignition coil, aiming to identify the ignition coil troubles and decode the data of the vehicle key chip. It can also simulate the vehicle key chip.

Autel APB112 Smart Key Simulator Notice:

1. Cannot be used with the XP200
2. Do Not disconnect the USB Cable when use
3. Can Not be working itself only. the APB112 Smart Key Simulator needs to be used together with the Autel Diagnostic Device.
4. Compatible with Autel IM608, Autel IM508 (If you try to use the APB112 Smart Key Simulator with IM508, you need to have the XP400. Otherwise the APB112 Smart Key Simulator cannot work with Autel IM508 )
5. Before operating or maintaining this unit, please read these instructions carefully, pay extra attention to the safety warnings and precautions. Use this unit correctly and properly.  Failure to do so may cause damage and/ or personal injury and will void the product warranty.

What can Autel APB112 Smart Key Simulator do for you?

1. Smart key simulator
2. 46, 4D data collection
3. 46 smart key password calculation
4. 46 chip simulation
5. Toyota 4D (94/ D4, 98) smart key simulation
6. Toyota H (88/ A8, A9, 39) smart key simulation
7. Collects data from the ignition coil
8. Identify ignition coil troubles
9. Decode vehicle key chip data
10. Simulate vehicle key chip (ex - 4D chip)
11. Must be used with an Autel diagnostic tool
12. Toyota/ Lexus smart key all key lost
13. Chip decoding (Hyundai 46)

Autel G-Box2 Accessory Tool Features:

For Mercedes Benz All Keys Lost, Faster Password Calculation
G-Box2 is compatible with both the Autel MaxiIM IM608 and IM508 with XP400.
Used for Faster Mercedes ECU data and EIS password calculation
For Mercedes DAS3 can EIS / EZS all keys lost
Reduce time reading W204 ECU data & W207 EIS by over 85%
No need to remove and reinsert the key for W221 & W164 after 2009 models

Why Buy Autel G-BOX2 Accessory Tool?

1. Support for Mercedes-Benz All Keys Lost, faster password calculation:
8X Times faster password calculation for EIS W172, W204, W207;
4X Times faster password calculation for EIS W209, W211, ETC.

2. Support for Mercedes-Benz All Keys Lost, no more repeated insertions and removals of IR simulator
W164/-2008, W251/-2008, W164/2009-, W169, W251/2009, W216, W221(partial), W202(K)/W208(K)/W210(K), W203(K)/W463(K)

3. Support for Mercedes-Benz All Keys Lost, can be programmed on the vehicle without removing the EIS
Except for EIS W164 / -2008, W251 / -2008, W221, W202 (K) / W208(K) /W210(K), AND W203 (K) / W463 (K), all other EISs can be programmed on the vehicle directly.

4. Support for Mercedes-Benz All Keys Lost, for BMW DME/DDE ISN Reading and Writing in Boot Mode or Bench Method
23 categories of Bosch engine, including MEVD/EDC17. 6 categories of Simens/ continental engine, including MSD/ MSV engine.

5. Contains All Connections Including Cables, Fuse Connector, and CAN Line Connectors

Full Package List:

1 set Autel MaxiIM IM508
1pc x MaxiIM IM508 Tablet
1pc x XP200 Key Programmer
1pc x Main Cable
1pc x AAC001 – MED17 Cable
1pc x KIA-20 Adaptor
1pc x Mazda-17 Adaptor
1pc x Honda-3 Adaptor
1pc x KIA-10 Adaptor
1pc x USB External Power Adapter
1pc x Mini USB Cable
1pc x Carrying Case
1pc x Quick guide

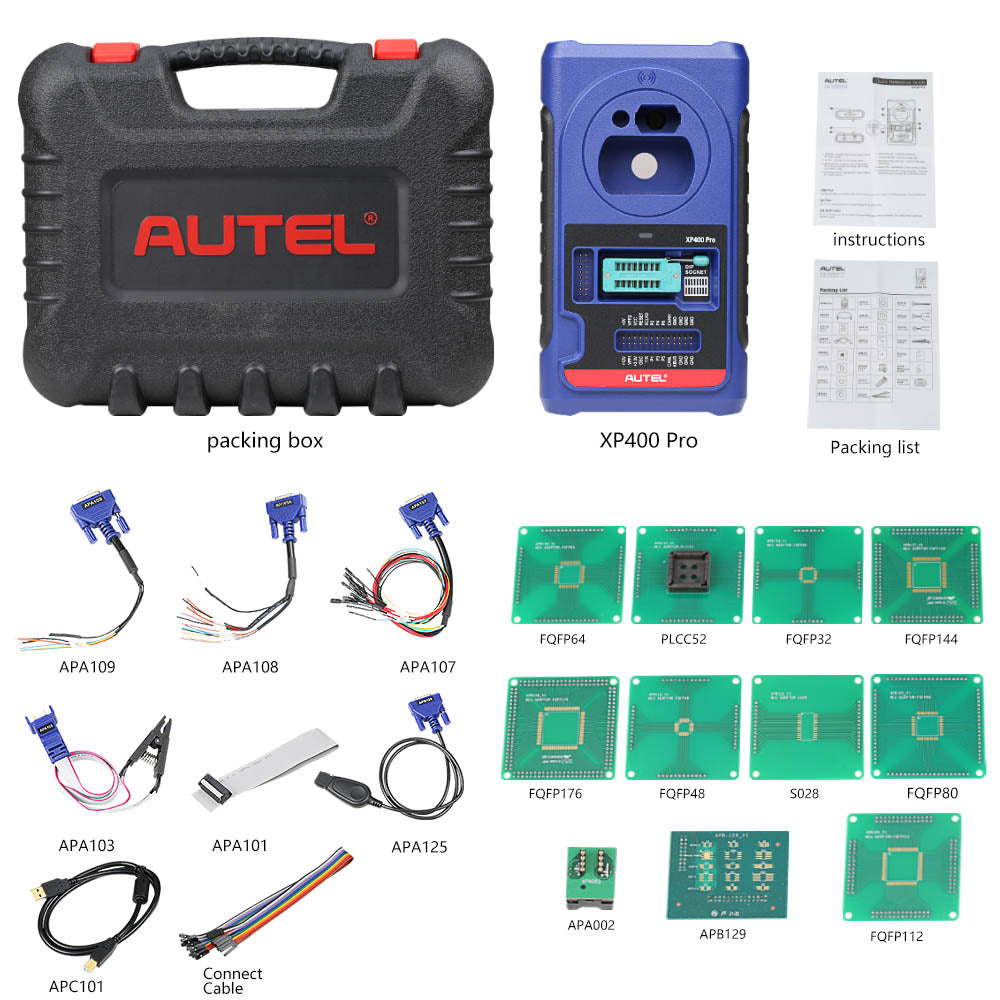

1 set Autel XP400 Pro
1pc x XP400 Pro Main Unite
1pc x APB129 – EEPROM Adapter
1pc x APA002 – EEPROM Socket
1pc x APB125 – Mercedes Infrared Collector
1pc x APB103 – MCU_PLCC52 Adapter
1pc x APB104 – MCU_FQFP64 Adapter
1pc x APB105 – MCU_FQFP80 Adapter
1pc x APB106 – MCU_FQFP112 Adapter
1pc x APB107 – MCU_FQFP144 Adapter
1pc x APB108 – MCU_FQFP176 Adapter
1pc x APB109 – MCU_FQFP32 Adapter
1pc x APB110 – MCU_FQFP48 Adapter
1pc x APB111 – MCU_SO28 Adapter
1pc x APA101 – Spare Signal Cable
1pc x APC101 – USB Cable (Standard USB –Type B USB)
1pc x APA103 – EEPROM Clamp
1pc x APA107 – ECU Cable
1pc x APA108 – MCU Cable
1pc x APA109 – MC9S12 Cable
1pc x Dupont Line

1 set Autel APB112 Smart Key Simulator
1pc x Autel APB112 Smart Key Simulator
1pc x USB Cable

1 set Autel G-Box2 Adapter
1pc x Autel G-BOX2
1pc x DB15 Cable
1pc x K-Line Cable
1pc x Fuse Cable
1pc x OBDII Extension Cable
1pc x Quick Reference Guide
2pcs x Fuse (5A)
2pcs x Clamp Cable
