[UK/EU Ship] Autel MaxiCOM MK908 Pro II Automotive Diagnostic Tool with J2534 ECU Programming ECU Coding, Active Test, 30+ Service Functions

: In stock

: Auto Diagnostic Tools

: Autel

£1,399.00 £1,799.00

Note: 1. Original Autel Brand New tools, High Quality and Powerful Functions 2. 1 Year Free Update Service: When the 1 year...
£1,399.00

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Note:

1. Original Autel Brand New tools, High Quality and Powerful Functions
2. 1 Year Free Update Service: When the 1 year free update expires, please click here to purchase an extra 1 year update service.
3. Supports Multiple Languages: English, Spanish, French, German, Polish, Italian, Japanese, Korean, Dutch, Portuguese, Turkish, Swedish, Thai, Arabic, Russian(provideyour Serial Number to change the language)
4. No IP Limitation problem: Autel MK908 Pro II can be used in anywhere. Don't need to worry about the Tablet blocking.
5. Fast Delivery from UK/ Europe (Czech), don't need to pay import tax.
6. To confirm compatibility before purchase, please email to Sales@AutelDiag.co.uk these information: Vehicle model and year, VIN, Engine code and functions needed.

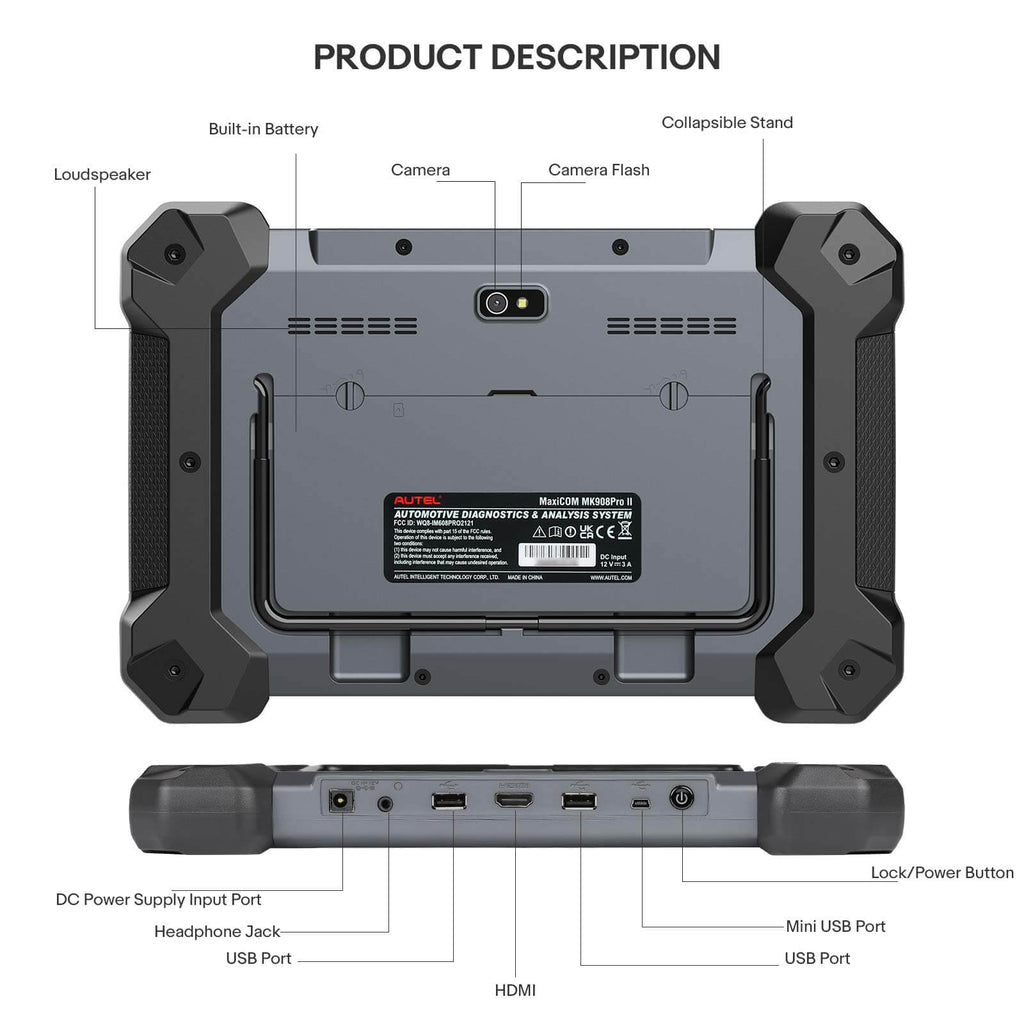

Autel MaxiCOM MK908 Pro II Description:

Autel MaxiCOM MK908P, the upgraded version of MS908P, is a professional diagnostic tool with a 10.1-inch touch screen and advanced hardware from the Samsung Exynos hexa-core processor and Android 4.4.2 OS for quick and comfortable car diagnostics. Offering comprehensive OE-level diagnostics, ECU coding and BMW/Benz ECU programming, the MK908P is an ideal automotive diagnostic tool for mechanics to troubleshoot the warning lights and fix the vehicle control modules' issues. It combined with the best possible coverage of OE-level diagnostics, and based on the revolutionary multitask-capable Android Operating system, the MaxiCOM organizes information with test instrumentation to help you diagnose symptoms, codes, and customer complaints easily, quickly and efficiently.
Autel MaxiCOM MK908 Pro II Diagnostic Scanner
Autel MaxiCOM MK908 Pro II Highlights:

1. High-End Automotive Diagnostic Tool, Comprehensive OE-Level Diagnostics, Easily, Quickly and Efficiently
2. ECU Coding and J2534 ECU Programming Functions: The diagnostic tool comes with a free J2534 ECU programming device that helps Benz and BMW users replace the existing software/firmware in the ECU, program new ECUs and fix software-controlled driving performance and emission issues.
3. Advanced Hardware: MK908P, as the advanced version of MS908P, features Hexa-Core processor upgraded from Quad-Core, Android4.4.2 OS upgraded from Android4.2, the 10.1" 1920*1200 screen upgraded from 9.7" 1024*769, and 15000mAh battery capacity increased by 4000mAh.
4. BI-Directional Control: The diagnostic tool supports bi-direction control to check the vehicle operating conditions. The bi-directional control of the ECM in Component Test enables the MK908P to transmit control commands to operate the vehicle systems.
5. Additional Service: The automotive scanner is designed to serve users with a rich array of easy-to-use functions and features. The MaxiFix provides you with an online troubleshooter database, and Remote Desk allows you to get help from others via TeamViewer software.

Autel MaxiCOM MK908 Pro II Features:

1. Powerful A7 quad-core 1.30GHz processor
2. 10.1-inch capacitive touch screen
3. Open source Android Operating System for fast boot-up and multitasking
4. Easy and intuitive navigation makes finding what you need simple and fast
5. Complete capabilities for codes, live data, actuation tests, adaptations and ECU coding
6. Displays live data in text, graph, analog and digital gauge for easy data review and analysis
7. Configures display options, sets triggers, records and playbacks results with one touch
8. Records and playbacks live data to pinpoint troubles of sensors and components
9. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
10. Remote technical support for convenient demonstration, training and increased customer satisfaction
11. Prints out recorded data anytime and anywhere with Wi-Fi technology
12. Automatic Wi-Fi updates available in new software releases

Autel MaxiCOM MK908 Pro II Functions:

1. J2534 ECU Programming:

The diagnostic tool comes with a J2534 ECU programming tool (also used as a VCI box) that is a SAE J2534-1 & -2 compliant pass thru reprogramming interface device. Using the updated OEM software, it is capable of helping BMW and Benz users replace the existing software/firmware in the Electronic Control Units (ECU), program new ECUs and fix software-controlled drivability issues and emission issues. It supports BT and USB communications and can transmit vehicle data to the MaxiCOM display tablet with or without a physical connection.
There are 3 indicators on the J2534 ECU programming device:
1) Vehicle LED– Flashes green when communicating with the vehicle's system
2) Connection LED –  Illuminates solid green when properly connected with the display tablet via the USB cable; Illuminates solid blue when connected with the display tablet via wireless (BT) connection
3) Power LED – Illuminates solid green when powered on: Flashes red when system failure occurs: Illuminates amber automatically at power up when the device is performing self-test procedure

2. System Diagnostics

Simply accessing the diagnostic modes via AutoVin or Control Unit, and you' re able to perform diagnosis over all the systems on the vehicle' s ECU in order to locate fault systems and retrieve DTCs.
1) ECU Information – provides the retrieved ECU information in detail.
2) Read Codes – displays detailed information of DTC records retrieved from the vehicle control module.
3) Erase Codes – erases DTC records and other data from the ECM.
4) Live Data – retrieves and displays live data and parameters from the vehicle' s ECU.
5) Active Test – provides specific subsystem and component tests.

3. 25 Special Functions:

The diagnostic tool is specially designed with the Service section to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances. It provides component adaptation or variant coding functions for custom configurations and also allows you to reprogram adaptive values for certain components after making repairs. It includes: Oil Reset, EPB, TPMS, BMS, Brake Bleed, DPF, Immo Keys, Injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, Odometer, Lang Change, Headlamp, CHG Tire Size, TEC Learn, ABS/SRS, Cylinder, Turbocharging, Limit, Clutch, Trans Adaption, Airbag Reset.
The most commonly performed service functions include:
1) Oil Reset Service: Allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depend on the vehicle driving conditions and climate.
2) EPB Service: Helps maintain the electronic braking system safely and effectively, deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.
3) SAS Service: Allows you to perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM.
4) DPF Service: Allows you to carry out numerous functions to the Diesel Particulate Filter system.
5) TPMS Service: Allows you to quickly look up the tire sensor IDs from the vehicle’s ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced.
6) IMMO Service: Programs a new anti-theft key, and performs key matching when the ignition switch, the combined instrument panel, ECU, BCM, or the remote control battery is replaced.
And Many More…

4. ECU Coding:

The Coding function is used to re-flash the vehicle control modules, it allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements, providing ways for the issues of Drivability, Fuel Efficiency, Power Loss, Fault Codes, Durability of Mechanical Parts.

5. Additional Features and Functions

To well serve the users, the diagnostic tool is equipped with a rich array of features and functions in addition to the Diagnostic and Service functions, including Remote Desk, MaxiFix, Shop Manager, Digital Inspection, MaxiScope, etc.
1) Remote Desk: With the simple, fast and secure remote control interface, you can receive ad-hoc remote support from Autel' s support center, colleagues, or friends, by allowing them to control your MaxiCOM tablet on their PC via the TeamViewer software.
2) MaxiFix: This is an additional feature in the cloud which enables users to network and access a database of procedures, repair and diagnostic tools. You are able to interact with fellow technicians and share knowledge via MaxiFix.
3) Digital Inspection & MaxiScope: The diagnostic scan tool can also be used in conjunction with the automotive oscilloscope Autel MP408 to perform electrical and electronic circuit testing and monitor signal activity, and it also supports performing a close vehicle inspection with the Autel digital inspection camera MV105/MV108.

Autel MaxiCOM MK908 Pro II Vehicle Coverage:

for Chrysler, for Dodge, for Ford, for GM, for Jeep, for Abarth, for Alfa, for Citroen, for Fiat, for Lancia, for Opel, for Peugeot, for Porsche, for Renault, for Saab, for Vauxhall, for Volvo, for Aston Martin, for Audi, for Bentley, for Benz, for Sprinter, for BMW, for Bugatti, for Ferrari, for Jaguar, for Lamborghini, for Land Rover, for Maserati, for Maybach, for Mini, for Rolls-Royce, for Seat, for Skoda, for Smart, for VW, for VW CV, for Dacia, for Ford EU, for LT3, for Acura, for Daewoo, for Daihatsu, for Honda, for Hyundai, for Hyundai CV, for Infiniti, for Kia, for Lexus, for Maruti Suzuki, for Mazda, for Mitsubishi, for Nissan, for Nissan GTR, for Samsung, for Scion, for Ssang Yong, for Subaru, for Suzuki, for Toyota, for Isuzu, for Mahindra, for Perodua, for Proton, for TATA, for HINO, for UD, for Fuso

Autel MaxiCOM MK908 Pro II Specifications:

Operating System: Android™ 4.4.2, KitKat
Processor: Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory: 2GB RAM & 64GB On-board Memory
Display: 10.1-inch LED screen with 1920x1200 resolution
Connectivity: Wi-Fi (802.11 a/b/g/n/ac); USB: 2.0
BT v.2.1 + EDR; SD Card (Support up to 32GB); HDMI
Camera (rear): 8.0 Megapixel, AF with Flashlight
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output: Microphone; Dual Speakers
3-Band 3.5 mm stereo/standard headset jack
Input Voltage: 12 V (9-24 V)
Power Consumption: 6.5 W
Power and Battery: 15000 mAh 3.8 V lithium-polymer battery; Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Operating Temp: 0 to 50°C (32 to 122°F)
Storage Temp: -20 to 60°C (-4 to 140°F)
Housing: Strong plastic housing with protective rubber boot
Dimensions (WxHxD): 312mm(12.28")x208mm(8.18")x36mm(1.41")
Weight: NW: 1.48kg (3.26 lb)
Protocols: ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW,
SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN,
GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939,
SAE J1708, Fault-Tolerant CAN

Autel MaxiCOM MK908 Pro II Package List:

1pc x Autel MaxiCOM MK908 Pro II Main Unit,
1pc x Clamp Cable,
1pc x MINI USB cable,
1pc x MaxiFlash Elite,
1pc x Auxiliary Power Outlet Adapter,
1pc x Quick Reference Guide,
1pc x Main Cable,
2pcs x Spare Fuse (6*30mm),
1pc x Packing List,
1pc x USB Cable,
1pc x Ethernet Serial Cable,
1pc x Soft Cloth,
1pc x 12V AC/DC Adapter,
1pc x USB to Ethernet Adapter,
1pc x Carrying Case (504*360*133mm)
1pc x BMW Ethernet cable (for F-series coding & programming)
If you need the User Manual, please click to read or download directly.

AutelDiag.co.uk built overseas warehouses, can ship order quickly and free.

Click "Ship from UK" to purchase items that were sent from UK. Now ONLY ship to UK. Usually can be delivered in 2- 4 business days.
Click "Ship from EU" to purchase items that mainly were sent from Czech. Mainly ship to European Union countries, no UK included. Usually can be delivered in 5- 10 business days.
We will ship the other items from Shenzhen, China, that don't mark where ship from. Usually can be delivered in 7- 15 business days.

Attention:

1. When we cannot deliver order from UK or EU, we will deliver the parcel from China automatically.
2. Sometimes due to strikes, natural disasters and other force majeure factors, delivery will be delayed。
3. From January 1, 2021, because of BREXIT, the transportation between the United Kingdom and other EU countries can cause taxation issues.

Please click here to read more details about Shipment and Delivery.
Please click here to read more details about Return Policy.
If you have any questions, welcome to contact us (Email to Sales@AutelDiag.co.uk).

AutelDiag.co.uk
