Autel MaxiIM IM608 + XP400 Pro Key/ Chip Programmer + APB112 Smart Key Simulator + G-Box2 Adapter Bundle, ECU Coding, Bi-Directional Control, 31 + Services Functions All Systems Diagnosis (No IP Blocking Problem)

: In stock

: Vehicle Diagnostic Scanners

: Autel UK Authorized Dealer

Regular price £2,772.00

Why I need buy this Bundle of Autel IM608, XP400 Pro, APB112 Key Simulator and G-Box2 Adapter? 1. The Autel XP400 Pro key...


Have a Question?

Be the first to ask a question about this.

Ask a Question
Why I need buy this Bundle of Autel IM608, XP400 Pro, APB112 Key Simulator and G-Box2 Adapter?
1. The Autel XP400 Pro key and chip programmer, compatible with the IM508 and IM608, reads/writes and learns keys to the vehicle. The XP400Pro enables programming of infrared keys for Mercedes vehicles and IC Chip keys on late model Hyundai KIA vehicles. The Autel XP400 Pro supports Data Read/ Write of 3,000 Plus Chip Types (inc. EEPROM, engine ECU, MCU, IMMO ECU).
2. The Autel APB112 Smart Key Emulator is designed to collect the data sent from the ignition coil, aiming to identify the ignition coil troubles and decode the data of the vehicle key chip. It can also emulate the vehicle key chip.
3. The Autel G-BOX2 is an adapter compatible with Autel IM508 (with purchase of Autel XP400 Pro programmer) and Autel IM608 Key Programming tablets used to aide in the programming keys for Mercedes DAS3 CAN EIS/ EXS in an ALL Keys Lost situation. The Autel G-Box2 also supports DME/ DDE ISN Reading and Writing in Boot Mode on applicable BMW vehicles. Bench Method is also supported. All Keys Lost password calculations are 4x to 8x faster. Moreover, the number of insertions and removals of W216 and W164 EISs after the year 2009 is reduced to zero, greatly simplifying the operation steps. It can be used in Boot Mode or Bench Method. G-BOX2 needs to be used with the Autel IM508 or IM608 for reliable performance.

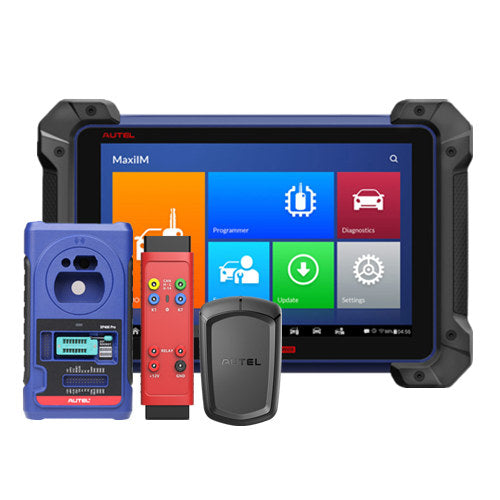

Autel IM608 plus XP400 Pro and APB112 Simulator and G-Box2 Adapter
2022 Newest Autel IM608 Pro (with Autel XP400 Pro) Features:
2022 Newest Autel IM608 Pro (with Autel XP400 Pro) is the upgraded of Autel IM608/IM508.
Extraordinarily powerful Cortex A7+A15 six-core processor,10.1-inch LED capacitive touch screen with 1920x1200 resolution.
Internal reliable 64GB On-board Memory for better performance, built-in 8-megapixel rear camera with autofocus and flashlight.
Powerful combination of advanced key programming/all systems diagnostics/advanced maintenance services.
Professional key programming equipped with XP400 PRO key programmer and MaxiFlash for complete IMMO coverage.
Smart mode for guided and automated key learning.
Expert mode for advanced key learning.
IMMO ECU reset/adaptation, refresh/coding.
Read/write transponder data, ECU/MCU/EEPROM data (eg. 9S12 encryption chip), IC card, detect remote frequency.
Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.
All special functions, EPB, DPF, SAS, Oil reset, BMS, TPMS sensor ID relearn, etc.
Autel XP400 Pro perform advanced key programming capabilities, beating most of key programming tool on current market.
Newly Upgraded:
Improved stability of read/write key, read/write chip, read/write IR key.
Menus are clear and easy to be selected intuitively
With HD wiring diagrams(not sufficiently covered)
Autel IM608 pro with xp400 pro comes with complete IMMO functions:
Read/ Write key chip
Read/ Write EEPROM (newly added support of AM29FXXX series,MB29FXXX series)
Read/ Write MCU
Read/ Write Engine ECU
Read/ Write Immobilizer ECU
Read/ Write Airbag
Frequency Detection
Read/ Write Mercedes Infrared Key.
U-n-l-o-c-k key [support 11 key types (Audi/ BMW)
Autel XP400 Pro Adds Support for Following Chips:
EEPROM-->>AMD-->>AM29FXXX series chip
EEPROM-->> FUJITSU-->> MB29FXXX series chip
EEPROM-->> ST-->> M29FXXX series chip
Engine control module-->> ST-->> M29FXXX series chip
IMMO-->> BENZ-->> ESL_W209_W906 (Motorola) read/write/erase function
IMMO-->> BMW-->>EWS3 module read/write function
REMOTE_RENEW(renew key)-->> NEC-->> V51 and V5 chip read/write/erase
Autel XP400 Pro Adds Support for Following Adaptor Board:
APB113 PCF79XXadaptor board
APB114 EWS3 adaptor board
APB115 NEC Adapter board
APB118 NEC ELV adaptor board
APB119 TB28FXXXadaptor board
APB120 TMS370adaptor board
APB121 AM29FXXX Adapter board
APB122 AM29FXXX adaptor board1
APB123 AM29FXXX adaptor board2
APB126 M35080/D80 adaptor board
APB127 MC68HC0(7)05BXX adaptor board
APB128 MC68HC05X32 adaptor board
Autel XP400 Pro Includes 12 Ports:
DC Port – provides 12V DC power supply.
USB Port – provides data communication and 5V DC power supply.
DB 26-Pin Port – connects with the Mercedes Benz infrared cable, vehicle key cable, ECU cable, MCU cable, MC9S12 cable.
Remote Control
Transponder Slot – holds the transponder.
Mercedes Infrared Key Slot – holds the Mercedes infrared key.
Vehicle Key Slot – holds the vehicle key.
Status LED – indicates the current operating status.
Cross Signal Pins – holds the MCU board, MCU spare cable or DIY signal interface.
EEPROM Locker – locks the EEPROM component transponder slot to ensure proper functioning.
EEPROM Component Transponder Slot – holds the EEPROM plug-in transponder or EEPROM socket.
Cross Signal Pins

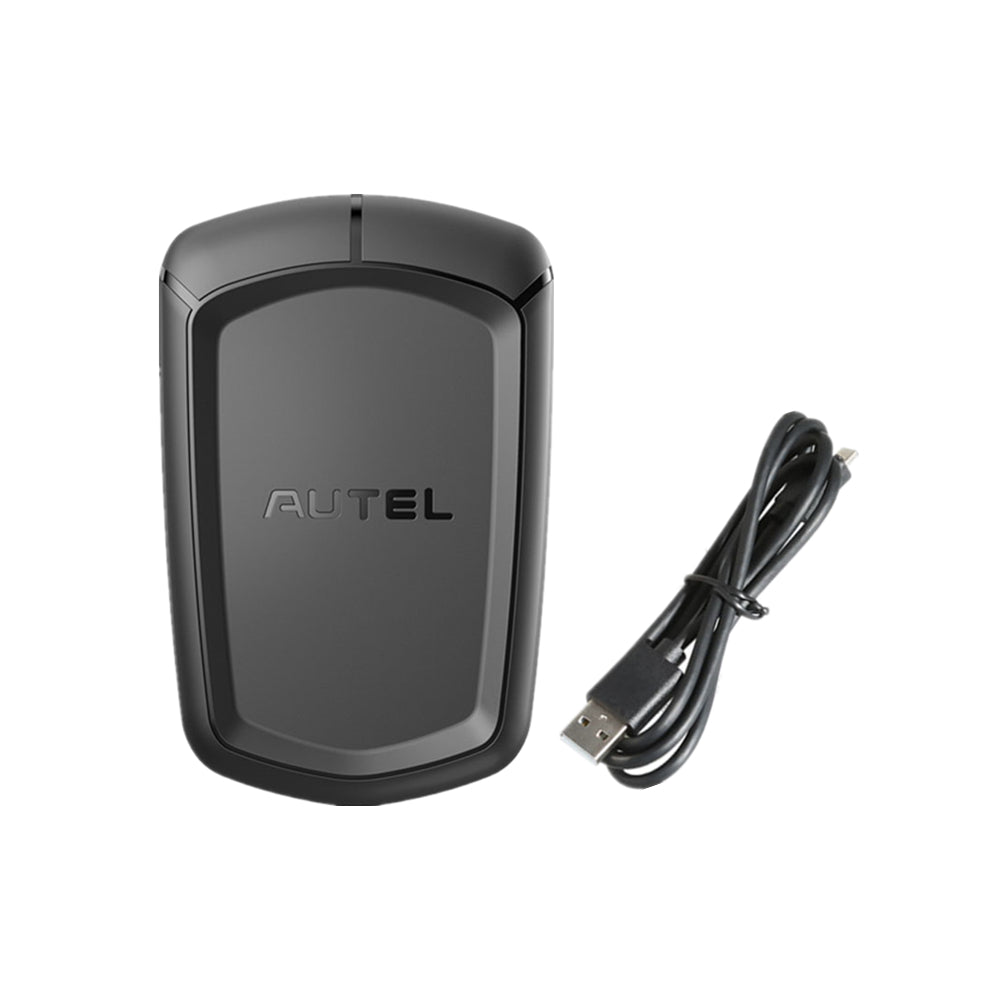

Autel APB112 Smart Key Simulator Notice:

1. Cannot be used with the XP200
2. Do Not disconnect the USB Cable when use
3. Can Not be working itself only. the APB112 Smart Key Simulator needs to be used together with the Autel Diagnostic Device.
4. Compatible with Autel IM608, Autel IM508 (If you try to use the APB112 Smart Key Simulator with IM508, you need to have the XP400. Otherwise the APB112 Smart Key Simulator cannot work with Autel IM508)
5. Before operating or maintaining this unit, please read these instructions carefully, pay extra attention to the safety warnings and precautions. Use this unit correctly and properly.  Failure to do so may cause damage and/ or personal injury and will void the product warranty.

What can Autel APB112 Smart Key Simulator do for you?

1. Smart key simulator
2. 46, 4D data collection
3. 46 smart key password calculation
4. 46 chip simulation
5. Toyota 4D (94/ D4, 98) smart key simulation
6. Toyota H (88/ A8, A9, 39) smart key simulation
7. Collects data from the ignition coil
8. Identify ignition coil troubles
9. Decode vehicle key chip data
10. Simulate vehicle key chip (ex - 4D chip)
11. Must be used with an Autel diagnostic tool
12. Toyota/ Lexus smart key all key lost
13. Chip decoding (Hyundai 46)

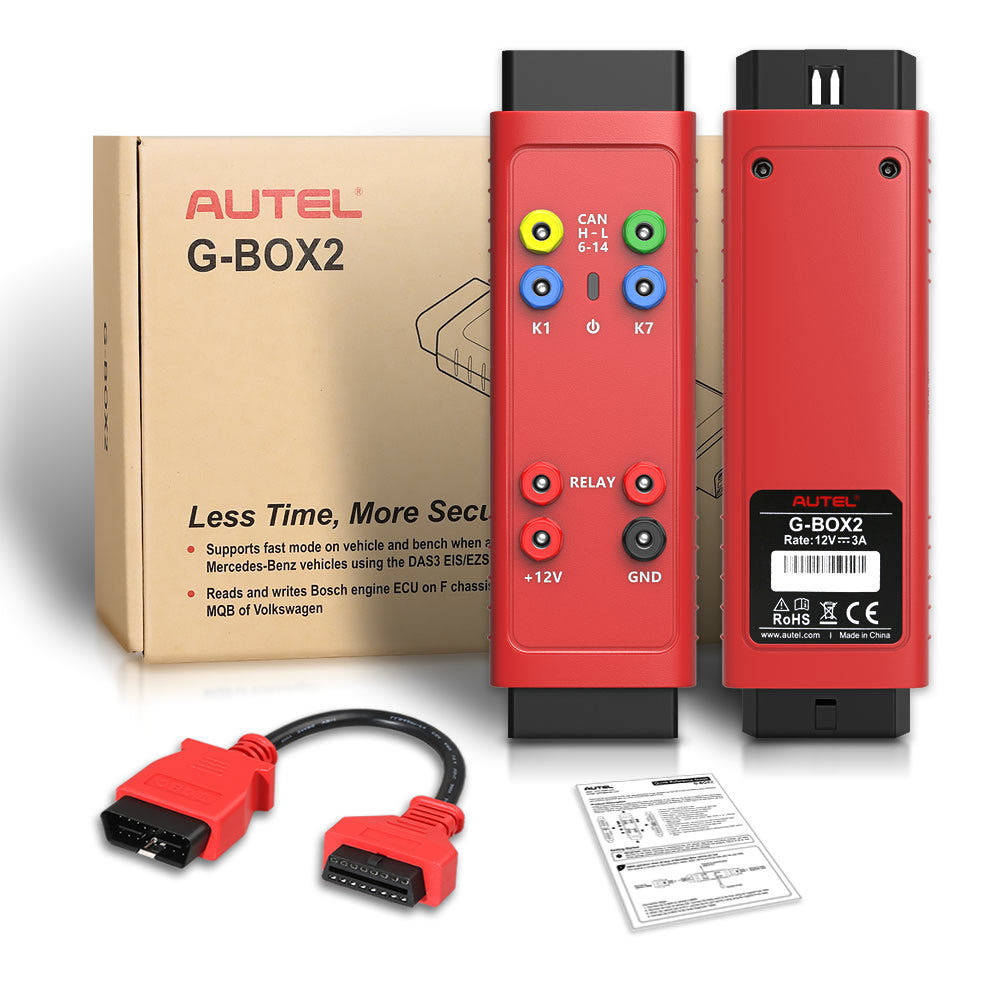

Autel G-Box2 Accessory Tool Features:

For Mercedes Benz All Keys Lost, Faster Password Calculation
G-Box2 is compatible with both the Autel MaxiIM IM608 and IM508 with XP400.
Used for Faster Mercedes ECU data and EIS password calculation
For Mercedes DAS3 can EIS / EZS all keys lost
Reduce time reading W204 ECU data & W207 EIS by over 85%
No need to remove and reinsert the key for W221 & W164 after 2009 models

What Can G-BOX2 Can do for You?
Supports Mercedes Benz All Key Lost, faster calculate password
Supports IM608 or IM508 with XP400
Used for Faster Mercedes ECU data and EIS password calculation
Mercedes DAS3 can EIS/EZS all keys lost
Reduces reading time of W204 ECU data & W207 EIS by over 85%
No need to remove and reinsert the key for W221 & W164 after 2009 Models

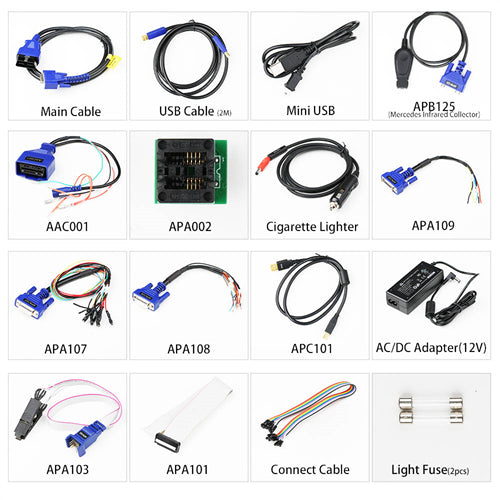

Full Package List:

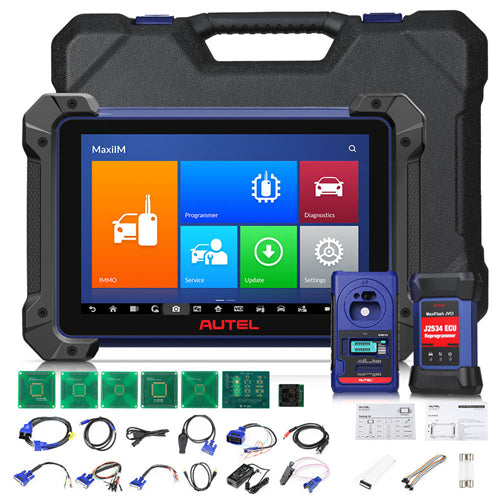

Autel MaxiIM IM608 Package List:
1x Autel MaxiIM IM608 Main Unit
1x APC101 USB Cable
1x APA101 Signal Cable
1x MaxiFlash JVCI
1x APB101 + APD101 ( EEPROM Adaptor + EEPROM Adapter Shell )
1x APA103(EEPROM Clamp)
1x XP400 (Same as XP400 Pro)
1x APB102 MB IR Cable
1x APA104 ECU Clamp
1x Main Cable
1x APB104 ( MCU_FQFP64 )
1x APA105 ( MCU Clamp )
1x USB Cable ( 2m )
1x APB105 MCU_FQFP80
1x APA106 ( MC9S12 Clamp )
1x Mini USB Cable
1x APB106 ( MCU_FQFP144 )
1x APA107 ( Connect Cable )
1x AC/DC 12V Adapter
1x APB107 ( MCU_FQFP144 )
1x Quick Reference Guide
2x Light Fuse 6*30mm
1x APB108 ( MCU_FQFP176 )
1x Packing List
1x Cigarette Lighter
1x APA002 ( EEPROM Socket )
1x Carrying Case 634*170*404mm
1x AAC001

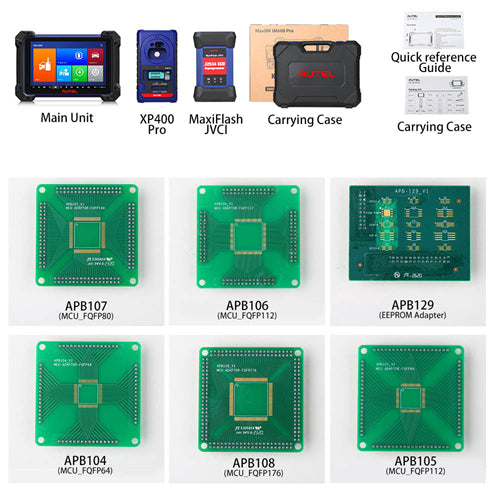

Autel XP400 Pro Package List:
1pc x XP400 Pro Main Unite
1pc x APB129 – EEPROM Adapter
1pc x APA002 – EEPROM Socket
1pc x APB125 – Mercedes Infrared Collector
1pc x APB103 – MCU_PLCC52 Adapter
1pc x APB104 – MCU_FQFP64 Adapter
1pc x APB105 – MCU_FQFP80 Adapter
1pc x APB106 – MCU_FQFP112 Adapter
1pc x APB107 – MCU_FQFP144 Adapter
1pc x APB108 – MCU_FQFP176 Adapter
1pc x APB109 – MCU_FQFP32 Adapter
1pc x APB110 – MCU_FQFP48 Adapter
1pc x APB111 – MCU_SO28 Adapter
1pc x APA101 – Spare Signal Cable
1pc x APC101 – USB Cable (Standard USB –Type B USB)
1pc x APA103 – EEPROM Clamp
1pc x APA107 – ECU Cable
1pc x APA108 – MCU Cable
1pc x APA109 – MC9S12 Cable
1pc x Dupont Line

Autel G-BOX2 Package List:
1pc x Autel G-BOX2
1pc x DB15 Cable
1pc x K-Line Cable
1pc x Fuse Cable
1pc x OBDII Extension Cable
1pc x Quick Reference Guide
2pcs x Fuse (5A)
2pcs x Clamp Cable

Autel APB112 Package List:
1pc x Autel APB112 Smart Key Simulator
1pc x USB Cable built overseas warehouses, can ship order without tax.
