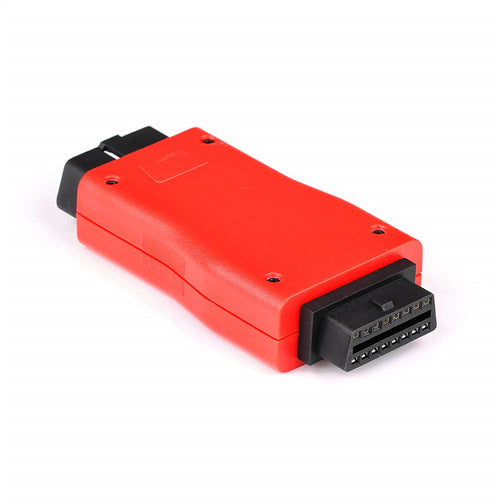

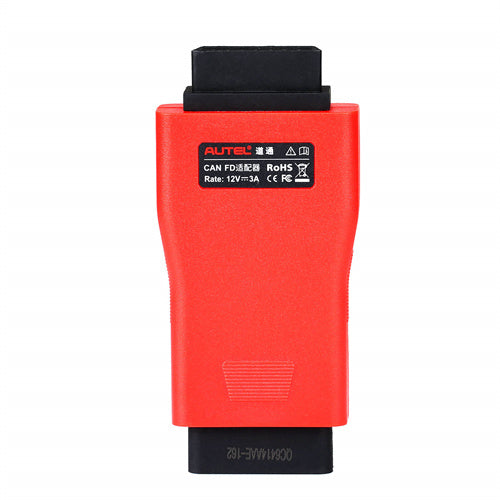

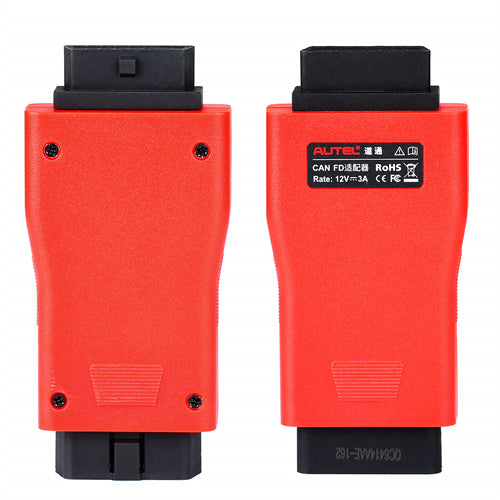

Autel CAN FD Adapter For Ford GM 2018-2021 Works With MS906, MS906BT, 808 Series, MK906BT

: In stock

:

: Autel

Regular price £77.00

CAN FD Protocol You Should Know:Vehicles currently using this faster CAN FD (CAN Flexible Data-Rate) protocol include many General Motors and Ford...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
CAN FD Protocol You Should Know:
Vehicles currently using this faster CAN FD (CAN Flexible Data-Rate) protocol include many General Motors and Ford 2019 and 2020 vehicles. CAN FD is one of the newer communication protocols, noted for being faster, more reliable, and more secure.

CAN FD  Adapter Features:
1. Original Autel Brand Tool
2. Support Can FD Protocol
3. Compatible with Autel's MaxiFlash Elite J2534-VCI, Wireless Diagnostic Interface, VCI 100 and VCI Mini.
4.Designed to work with Maxisys Elite, MaxiSys 908 series and MaxiSys 906 series to communicate with applicable vehicles.
4. Vehicles Supported: Designed to support diagnosis of vehicle models with CAN FD protocol, including the MY2020 GM models.
5.Small size and easy to carry, superior flexibility and durability.
6.Autel CAN FD Adapter comes with a one-year warranty.

SUPPORT CAN FD PROTOCOL
Designed to support diagnosis of vehicle models with CAN FD protocol, including the MY2020 GM models.

Compatible with Autel VCI
Compatible with a supported Autel vehicle communication interface (VC) to communicate with applicable vehicles.

CAN FD Cable Works With The Following Models
for GM
for 2020+ Corvette
for 2020+ Cadillac CT5
for 2020+ Cadillac CTS4
for 2021+ Large SUVs

for Ford
for 2018+ Expedition/Navigator
for 2018+ EcoSport
for 2019+ Ranger
for 2020+ Transit
for 2019+ Transit Connect
for 2020+ Explorer/Aviator
for 2020+ Super Duty
for 2020+ Escape/Corsair

Important information!!

The CAN FD Adapter from Autel is designed to connect to compatible vehicle communication interfaces (VCIs) to enable its tablets to communicate via the CAN FD (flexible data-rate) communications protocol and diagnose the vehicle.

Vehicles currently using the CAN FD protocol include many General Motors and Ford 2019 and 2020 vehicles.

NOTE: Compatible with VCI or VCI/J2534 device included with Gen 1 Autel MaxiSys units: MaxiCheck MX808, MaixSys MaixSys MS905, MaixSys MS906, MaixSys MS906BT, MaixSys MS906TS, MaixSys MS908, MaixSys MS908P, MaixSys ELITE, MaxiCOM MK906BT
NOTE: Compatible with VCI/J2534 device included with the Gen 2 Autel MaxiSys units: MaxiADAS, MS908S, MS908SP, IM508, IM608
NOTE: CAN FD Adapter not required for Autel Gen 3 units: Ultra, MS919 or MS909.
NOTE:Cannot work with AP200 or Maxiflash Pro
NOTE: Prior to use, update the VCI with the latest firmware.
( To update the VCI, use the power supply and plug in the MaxiSYS tablet to an electrical outlet. Attach the supplied USB cable to the MaxiSYS tablet. Tap the VCI icon on the Tablet toolbar. Next, tap the VCI firmware version and if an update is available, tap Update for the new version to install. A progress bar will display as the update is installed. Once completed, follow the instructions displayed and reboot the VCI by detecting the USB cable from the VCI and then plugging the USB cable back into the VCI. The tabler will then connect to the VCI. A message will display once the VCI update is completed.)

MaxiFlash Elite J2534-VCI/ Wireless Diagnostic Interface:
01.Connect the main cable' s female adapter to the Vehicle Data connector on the VCl unitand tighten the captive(thumb)screws.
02.Connect the CAN FD adapter 's 16-pin feamale connector to the main cable ' s male adapter.
03.Connect the attached CAN FD adapter to the vehicle' s DLC which is generally located under the vehicle dashboard.

VCI 100/VCI Mini:
01. Connect the CAN FD adapter's 16-pin female connector to the Vehicle Data Connector on the VCI unit.
02. Connect the attached CAN FD adapter to the vehicle's DLC .which is generally located under the vehicle dashboard.

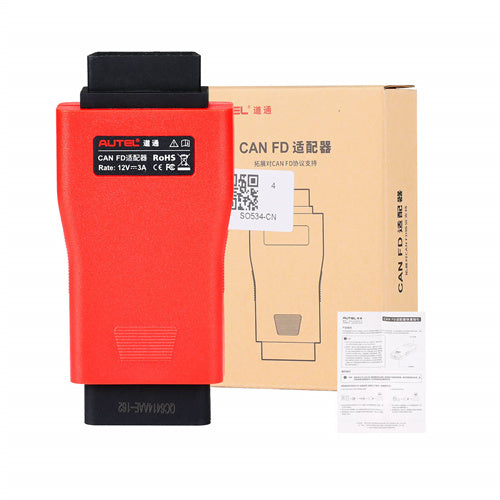

Package List:

1pc x AUTEL CAN FD Adapter
